Come l'ho realizzato: analisi dinamica con il contenitore layout

Questo esempio mostra come creare contenuti dinamici e interattivi del foglio con il contenitore layout.Il contenitore layout supporta la progettazione senza griglia e le visualizzazioni in pila, consentendo un ampio controllo sulla disposizione dei contenuti analitici. Inoltre, come con altri oggetti contenitore, è possibile presentare dinamicamente informazioni diverse a seconda di una varietà di condizioni, come gli stati delle variabili e di selezione.

Questo esempio mostra come creare un contenitore layout per presentare informazioni da più grafici come un oggetto singolo. Alcuni approcci di progettazione generali includono:

Disporre oggetti simili in modo simmetrico, utilizzando lo stile per distinguere diverse sezioni di dati.
Rimuovere i bordi dagli oggetti individuali all'interno del contenitore di layout, e quindi aggiungere un bordo attorno all'intero oggetto una volta terminato.
Visualizzare oggetti o dati diversi in modo condizionale a seconda dell'interazione dell'utente—in questo esempio, un grafico a barre in cui l'utente può mostrare o nascondere i dettagli.
Costruire elementi compositi costituiti da più oggetti diversi posizionati uno accanto all'altro—in questo esempio, un pulsante interattivo che simula un interruttore on/off.
Consentire agli utenti di selezionare e filtrare i dati in più modi quando devono esaminarli più da vicino.

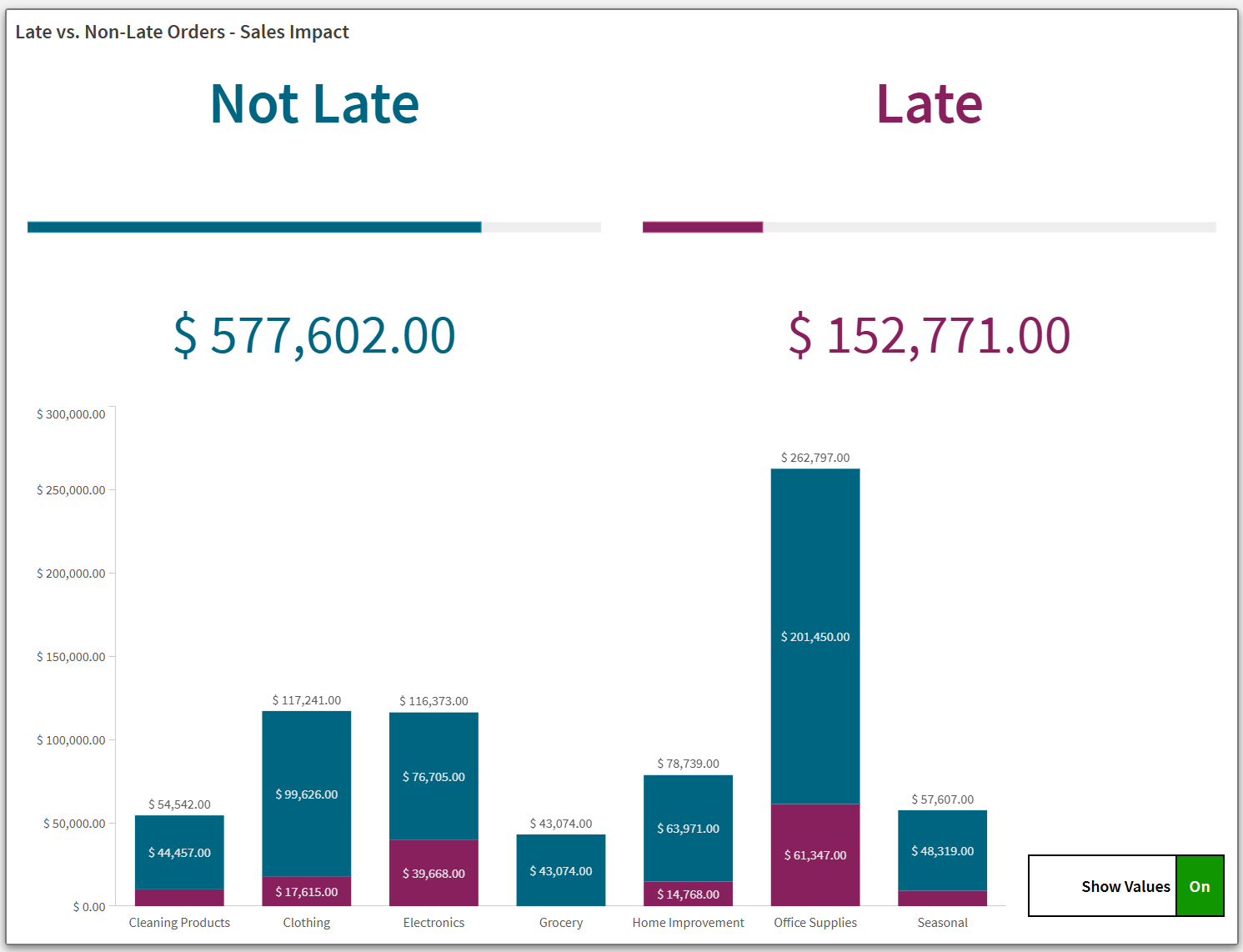

contenitore layout completato per l'esempio — Risultato finale

Preparazioni

Creare una nuova app e incollare Esempio script di caricamento in una nuova sezione in Editor caricamento dati. Quindi, caricare i dati.

Dopo aver caricato i dati, passare alla vista foglio.

Esempio script di caricamento

SET DateFormat='M/D/YYYY';

Sales:

Load

date(Now()-Offset,'MM/DD/YYYY') as [Order Date],

* Inline [

Order ID,Offset,Product Type,Shipment Status,Fulfillment Center,Sales,Late Status,Days Late
1,30,Electronics,Delivered,10036,9950,Not Late,
2,30,Office Supplies,Delivered,10036,4412,Not Late,
3,30,Office Supplies,Delivered,10038,7480,Late,3
4,30,Home Improvement,Delivered,10035,665,Late,4
5,30,Home Improvement,Delivered,10038,594,Not Late,
6,30,Home Improvement,Stalled,10038,8267,Not Late,
7,30,Clothing,Delivered,10035,1014,Not Late,
8,30,Cleaning Products,Delivered,10036,6999,Late,1
9,30,Electronics,Delivered,10036,733,Not Late,
10,29,Office Supplies,Delivered,10036,3487,Not Late,
11,29,Office Supplies,Delivered,10035,7343,Not Late,
12,29,Office Supplies,Delivered,10036,9239,Late,14
13,27,Cleaning Products,Delivered,10037,1463,Not Late,
14,27,Cleaning Products,Stalled,10035,4688,Not Late,
15,27,Home Improvement,Delivered,10038,5539,Late,2
16,27,Clothing,Delivered,10035,8388,Not Late,
17,27,Office Supplies,Delivered,10035,7560,Not Late,
18,27,Office Supplies,Delivered,10035,5738,Not Late,
19,27,Office Supplies,Delivered,10035,5469,Not Late,
20,26,Home Improvement,Delivered,10037,1435,Not Late,
21,26,Office Supplies,Delivered,10036,5962,Late,1
22,26,Clothing,Delivered,10035,4020,Late,7
23,26,Electronics,Delivered,10036,3888,Late,5
24,25,Office Supplies,Delivered,10037,6496,Not Late,
25,25,Clothing,Delivered,10038,4215,Late,11
26,25,Home Improvement,Delivered,10036,1801,Not Late,
27,25,Grocery,Delivered,10036,6471,Not Late,
28,24,Home Improvement,In Transit,10036,4578,Not Late,
29,24,Office Supplies,Cancelled,10037,3493,Not Late,
30,24,Office Supplies,Cancelled,10035,6572,Not Late,
31,24,Electronics,In Transit,10037,6691,Not Late,
32,24,Office Supplies,In Transit,10038,2721,Late,9
33,24,Grocery,In Transit,10035,8300,Not Late,
34,23,Grocery,In Transit,10035,840,Not Late,
35,23,Office Supplies,In Transit,10036,8972,Not Late,
36,23,Cleaning Products,Stalled,10036,9474,Not Late,
37,23,Home Improvement,In Transit,10038,1935,Not Late,
38,23,Office Supplies,In Transit,10036,1748,Not Late,
39,23,Seasonal,In Transit,10037,1948,Not Late,
40,22,Office Supplies,In Transit,10035,3121,Not Late,
41,22,Electronics,In Transit,10036,7377,Not Late,
42,22,Cleaning Products,In Transit,10037,1492,Not Late,
43,22,Office Supplies,Stalled,10037,7801,Late,6
44,22,Office Supplies,In Transit,10035,4663,Not Late,
45,22,Grocery,In Transit,10035,4649,Not Late,
46,21,Seasonal,In Transit,10038,2612,Not Late,
47,20,Clothing,In Transit,10036,8880,Late,4
48,20,Office Supplies,In Transit,10036,1391,Late,8
49,20,Cleaning Products,Cancelled,10037,1307,Not Late,
50,20,Home Improvement,In Transit,10037,6424,Not Late,
51,20,Grocery,In Transit,10035,5051,Not Late,
52,20,Cleaning Products,In Transit,10035,1286,Not Late,
53,19,Cleaning Products,In Transit,10038,8719,Not Late,
54,19,Office Supplies,In Transit,10037,8576,Not Late,
55,19,Seasonal,In Transit,10038,2866,Not Late,
56,19,Electronics,Stalled,10035,5186,Late,3
57,19,Clothing,In Transit,10038,4079,Not Late,
58,19,Office Supplies,In Transit,10038,706,Not Late,
59,19,Seasonal,In Transit,10036,6111,Not Late,
60,19,Clothing,In Transit,10036,5677,Not Late,
61,19,Home Improvement,In Transit,10037,3993,Not Late,
62,19,Office Supplies,In Transit,10037,1625,Not Late,
63,19,Seasonal,In Transit,10035,5805,Not Late,
64,19,Home Improvement,In Transit,10035,4453,Not Late,
65,19,Office Supplies,In Transit,10038,2252,Not Late,
66,18,Electronics,In Transit,10038,8362,Not Late,
67,18,Clothing,In Transit,10037,4182,Not Late,
68,18,Cleaning Products,In Transit,10038,9044,Not Late,
69,18,Clothing,In Transit,10035,6531,Not Late,
70,18,Office Supplies,In Transit,10035,8408,Not Late,
71,17,Home Improvement,Stalled,10038,9629,Not Late,
72,17,Seasonal,Preparation,10035,2128,Not Late,
73,17,Home Improvement,Cancelled,10038,1024,Not Late,
74,17,Office Supplies,Preparation,10037,9684,Late,2
75,17,Electronics,Preparation,10036,6753,Late,2
76,16,Clothing,Preparation,10036,3192,Not Late,
77,16,Office Supplies,Preparation,10038,3954,Not Late,
78,16,Office Supplies,Preparation,10035,8377,Not Late,
79,16,Office Supplies,Preparation,10038,2334,Not Late,
80,15,Grocery,Preparation,10037,7178,Not Late,
81,15,Office Supplies,Preparation,10037,1188,Not Late,
82,15,Electronics,Preparation,10035,4908,Not Late,
83,15,Electronics,Preparation,10035,3552,Not Late,
84,15,Clothing,Preparation,10037,875,Not Late,
85,14,Office Supplies,Preparation,10038,7886,Late,4
86,14,Home Improvement,Cancelled,10036,2358,Late,1
87,14,Clothing,Preparation,10037,8368,Not Late,
88,14,Grocery,Preparation,10037,142,Not Late,
89,14,Office Supplies,Preparation,10037,5537,Not Late,
90,14,Home Improvement,Preparation,10035,3231,Not Late,
91,14,Clothing,Preparation,10036,2283,Not Late,
92,14,Office Supplies,Preparation,10038,5952,Not Late,
93,13,Office Supplies,Preparation,10038,5513,Not Late,
94,13,Home Improvement,Preparation,10036,5871,Not Late,
95,13,Grocery,Preparation,10038,4425,Not Late,
96,13,Clothing,Preparation,10037,500,Late,1
97,13,Electronics,Preparation,10037,9792,Not Late,
98,13,Seasonal,Preparation,10035,4576,Not Late,
99,13,Office Supplies,Preparation,10038,228,Not Late,
100,13,Cleaning Products,Preparation,10037,3086,Late,1
101,13,Office Supplies,Preparation,10038,2329,Not Late,
102,12,Home Improvement,Preparation,10036,8862,Not Late,
103,12,Office Supplies,Preparation,10037,3991,Not Late,
104,12,Office Supplies,Preparation,10037,5435,Not Late,
105,12,Grocery,Preparation,10038,2476,Not Late,
106,12,Clothing,Preparation,10037,8362,Not Late,
107,12,Seasonal,Preparation,10035,1496,Not Late,
108,12,Electronics,Preparation,10038,3210,Not Late,
109,11,Clothing,Preparation,10038,7692,Not Late,
110,11,Cleaning Products,Preparation,10037,1585,Not Late,
111,11,Home Improvement,Cancelled,10037,1874,Not Late,
112,11,Office Supplies,Preparation,10037,869,Not Late,
113,11,Office Supplies,Preparation,10036,8578,Not Late,
114,10,Office Supplies,Preparation,10036,684,Not Late,
115,10,Electronics,Preparation,10036,9889,Not Late,
116,10,Office Supplies,Preparation,10036,4256,Not Late,
117,8,Seasonal,Preparation,10038,9288,Late,7
118,8,Office Supplies,Cancelled,10038,1534,Not Late,
119,8,Seasonal,Preparation,10038,7496,Not Late,
120,8,Electronics,Preparation,10036,8454,Late,3
121,8,Office Supplies,Stalled,10038,1063,Late,
122,8,Office Supplies,Preparation,10037,5958,Not Late,
123,8,Seasonal,Preparation,10036,686,Not Late,
124,8,Grocery,Preparation,10036,1799,Not Late,
125,8,Clothing,Stalled,10036,8485,Not Late,
126,7,Office Supplies,Preparation,10036,6451,Not Late,
127,7,Office Supplies,Pending,10036,1212,Not Late,
128,7,Electronics,Pending,10037,9037,Not Late,
129,7,Electronics,Pending,10037,6522,Late,20
130,7,Electronics,Pending,10038,8865,Late,4
131,7,Clothing,Cancelled,10036,7929,Not Late,
132,6,Seasonal,Pending,10038,9082,Not Late,
133,6,Office Supplies,Pending,10037,6563,Not Late,
134,6,Seasonal,Pending,10038,3513,Not Late,
135,5,Office Supplies,Pending,10035,2340,Not Late,
136,5,Cleaning Products,Pending,10035,590,Not Late,
137,5,Office Supplies,Pending,10035,542,Not Late,
138,5,Cleaning Products,Pending,10035,4809,Not Late,
139,5,Grocery,Cancelled,10035,1743,Not Late,
140,5,Office Supplies,Pending,10035,8312,Not Late,
141,4,Clothing,Pending,10035,5895,Not Late,
142,4,Clothing,Pending,10037,4882,Not Late,
143,4,Clothing,Pending,10037,9106,Not Late,
144,3,Office Supplies,Pending,10036,7422,Late,1
145,3,Clothing,Pending,10038,2686,Not Late,
146,3,Office Supplies,Pending,10037,698,Late,3
147,3,Office Supplies,Pending,10035,9514,Not Late,
148,2,Home Improvement,Pending,10037,6206,Late,2
149,2,Office Supplies,Pending,10035,9158,Not Late,
150,1,Electronics,Cancelled,10036,3204,Not Late,

];

drop field Offset;

Parte 1: Crea la variabile

Per prima cosa, crea la variabile. Questa variabile è l'oggetto di condizioni che verranno aggiunte in seguito. I valori della variabile verranno modificati durante l'analisi tramite interazioni con oggetti pulsante.

Creare la seguente variabile. Impostare la Definizione su =false().

vViewChartValues

Creazione di una variabile
