Top - chart function

Top() evaluates an expression at the first (top) row of a column segment in a table. The row for which it is calculated depends on the value of offset, if present, the default being the top row. For charts other than tables, theTop() evaluation is made on the first row of the current column in the chart's straight table equivalent.

Syntax:

Top([TOTAL] expr [ , offset [,count ]])

Return data type: dual

Arguments
Argument	Description
expr	The expression or field containing the data to be measured.
offset	Specifying an offset of n, greater than 1, moves the evaluation of the expression down n rows below the top row. Specifying a negative offset number makes the Top function work like the Bottom function with the corresponding positive offset number.
count	By specifying a third parameter count greater than 1, the function will return a range of count values, one for each of the last count rows of the current column segment. In this form, the function can be used as an argument to any of the special range functions. Range functions
TOTAL	If the table is one-dimensional or if the qualifier TOTAL is used as argument, the current column segment is always equal to the entire column. Defining the aggregation scope

A column segment is defined as a consecutive subset of cells having the same values for the dimensions in the current sort order. Inter-record chart functions are computed in the column segment excluding the right-most dimension in the equivalent straight table chart. If there is only one dimension in the chart, or if the TOTAL qualifier is specified, the expression evaluates across full table.

If the table or table equivalent has multiple vertical dimensions, the current column segment will include only rows with the same values as the current row in all dimension columns, except for the column showing the last dimension in the inter-field sort order.

Limitations:

Recursive calls will return NULL.
Sorting on y-values in charts or sorting by expression columns in tables is not allowed when this chart function is used in any of the chart's expressions. These sort alternatives are therefore automatically disabled. When you use this chart function in a visualization or table, the sorting of the visualization will revert back to the sorted input to this function.

Example: Chart expressions
Example	Result
Top( Sum(Sales) )	Returns the value of Sales for the first (top) row of a column segment in a table.

Example - Top fundamentals

Overview

Open the Data load editor and add the load script below to a new section.

The load script contains:

A dataset which is loaded into a data table called Example.
The following fields in the data table:
- Year
- Sales

Load script

Example:
LOAD * INLINE [
Year, Sales
2019, 1000
2020, 1500
2021, 1200
2022, 1800
2023, 1700
];

Results

Load the data and open a sheet. Create a new table and add this field as a dimension:

Year

Create the following measures:

=Sum(Sales), to find the annual sales.
=Top(Sum(Sales)), to find the sales value for the first year, that is the first (top) row of a column in a table.
=Sum(Sales) - Top(Sum(Sales)), to calculate the variance between the Sales value of the current row and the value for the first (top) row of a column.
=Sum(Sales)-Top(Sum(Sales), 3), to calculate the variance between the sales value of the current row and the value of the 3rd row from the top.
=(Sales - Top(Sales)) / Top(Sales), to return the change in Sales as a ratio / percentage as compared to first row. To show this value as a percentage, under Number formatting, select Number > Formatting Simple > 12.34%.

Sort the table on the dimension Year in ascending order.

Results table
Year	Sum(Sales)	Top(Sum(Sales))	Sum(Sales) - Top(Sum(Sales))	Sum(Sales)-Top(Sum(Sales), 3)	(Sales - Top(Sales)) / Top(Sales)
Totals	7200	1000	6200	6000	-
2019	1000	1000	0	-200	0.00%
2020	1500	1000	500	300	50.00%
2021	1200	1000	200	0	20.00%
2022	1800	1000	800	600	80.00%
2023	1700	1000	700	500	70.00%

Looking at the results, you can compare the Sales values in the current period with the top (or first) period.

The Sum(Sales) - Top(Sum(Sales)) measure returns the change in Sales values comparing the current period to the first period.
The Sum(Sales)-Top(Sum(Sales), 3) measure returns the sum of Sales for the current row minus the third period from the top.
The =(Sales - Top(Sales)) / Top(Sales) measure returns the change in Sales compared to the first period as a percentage.

This function can also be used in charts other than tables, for example bar charts.

Do the following:

Create a bar chart, and then add this field as a dimension:

Year

Create the following measure:

=Sum(Sales)- Top(Sum(Sales)), to return the variance in sales between the current period and the top period.

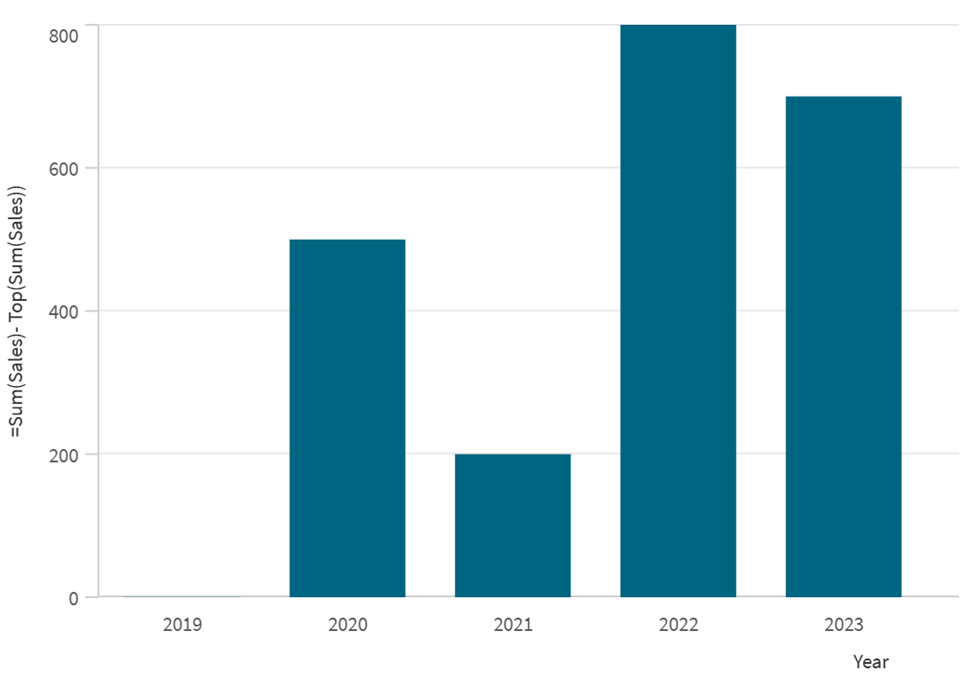

Bar chart showing the variance in sales between the current period and the top (or first) period. — Bar chart showing results for the Top function

Using the Top function in a bar chart provides a visual comparison of the variance between the sales of the current period versus the top (or first) period.

Example - Top scenario

Overview

Open the Data load editor and add the load script below to a new section.

The load script contains:

A dataset which is loaded into a data table called Example.
The following fields in the data table:
- OrderID
- Product
- SalesValue
- OrderDate

Load script

Example:
LOAD * INLINE [
OrderID, Product, SalesValue, OrderDate
1, "Product A", 500, '2023-01-10'
2, "Product B", 300, '2023-01-15'
3, "Product C", 450, '2023-02-01'
4, "Product D", 700, '2023-02-20'
5, "Product E", 350, '2023-03-05'
];

Results

Load the data and open a sheet. Create a new table and add this field as a dimension:

Product

Create the following measures:

=RangeAvg(Top(Sum(SalesValue),1,3)) to return the average of the three top rows.
=Sum(SalesValue) - RangeAvg (Top(Sum(SalesValue),1,3)) to calculate the variance between the current row and the average of the three top rows.
=Sum(SalesValue) to calculate the total SalesValue for the current row.

Results table
Product	RangeAvg(Top(Sum(SalesValue),1,3))	Sum(SalesValue) - RangeAvg (Top(Sum(SalesValue),1,3))	Sum(SalesValue)
Totals	416.67	1883.33	2300
2019	416.67	83.33	500
2020	416.67	--116.67	300
2021	416.67	33.33	450
2022	416.67	283.33	700
2023	416.67	-66.67	350

The results show how you can use the combination of the RangeSum and the Top function to analyze and compare sales values.

Example - Chart expression using Top

Overview

Open the Data load editor and add the load script below to a new section.

The load script contains:

Two data tables called Monthnames and Sales2013.

Load script

Monthnames:
LOAD *, Dual(MonthText,MonthNumber) as Month INLINE [
MonthText, MonthNumber
Jan, 1
Feb, 2
Mar, 3
Apr, 4
May, 5
Jun, 6
Jul, 7
Aug, 8
Sep, 9
Oct, 10
Nov, 11
Dec, 12
];

Sales2013:
Crosstable (MonthText, Sales) LOAD * inline [
Customer|Jan|Feb|Mar|Apr|May|Jun|Jul|Aug|Sep|Oct|Nov|Dec
Astrida|46|60|70|13|78|20|45|65|78|12|78|22
Betacab|65|56|22|79|12|56|45|24|32|78|55|15
Canutility|77|68|34|91|24|68|57|36|44|90|67|27
Divadip|57|36|44|90|67|27|57|68|47|90|80|94
] (delimiter is '|');

Results

Load the data and open a sheet. Create a new table and add this field as a dimension:

Customer

Create the following measures:

=Sum(Sales), to calculate the sum of sales.
=Top(Sum(Sales)), to show the sum of sales of the Customer in the top row.
=Sum(Sales)+Top(Sum(Sales)), to add the Sum(Sales) value of the current Customer with the Customer in the top row.
=Sum(Sales)+Top(Sum(Sales), 3), to add the Sum(Sales) value of the current Customer with the value for the Customer that is third from the top row.

Results table
Customer	Sum(Sales)	Top(Sum(Sales))	Sum(Sales)+Top(Sum(Sales))	Sum(Sales)+Top(Sum(Sales), 3)
Totals	2566	587	3153	3249
Astrida	587	587	1174	1270
Betacab	539	587	1126	1222
Canutilty	683	587	1270	1366
Divadip	757	587	1344	1440

The measure Top(Sum(Sales)) returns 587 for all rows because this is the value of the top row: Astrida.

For the measure Sum(Sales)+Top(Sum(Sales)), the row Betacab returns 1126, which is the result of adding the Sum(Sales) value for Betacab and Astrida, the Customer in the top row.

For the measure Sum(Sales)+Top(Sum(Sales), 3), the argument offset is set to 3. The expression adds the Sum(Sales) value for the current row and the third row from the top, Canutility. For example, the value 1440 is returned for customer Divadip. This is the result of adding the Sum(Sales) value for Divadip and the SumSales for Canutility (757+683).
