Below - chart function

Below() evaluates an expression at a row below the current row within a column segment in a table. The row for which it is calculated depends on the value of offset, if present, the default being the row directly below. For charts other than tables, Below() evaluates for the row below the current column in the chart's straight table equivalent.

Syntax:

Below([TOTAL] expr [ , offset [,count ]])

Return data type: dual

Arguments
Argument	Description
expr	The expression or field containing the data to be measured.
offset	Specifying an offset n, greater than 1 moves the evaluation of the expression n rows further down from the current row. Specifying an offset of 0 will evaluate the expression on the current row. Specifying a negative offset number makes the Below function work like the Above function with the corresponding positive offset number.
count	By specifying a third parameter count greater than 1, the function will return a range of count values, one for each of count table rows counting downwards from the original cell. In this form, the function can be used as an argument to any of the special range functions. Range functions
TOTAL	If the table is one-dimensional or if the qualifier TOTAL is used as argument, the current column segment is always equal to the entire column. Defining the aggregation scope

On the last row of a column segment, a NULL value is returned, as there is no row below it.

A column segment is defined as a consecutive subset of cells having the same values for the dimensions in the current sort order. Inter-record chart functions are computed in the column segment excluding the right-most dimension in the equivalent straight table chart. If there is only one dimension in the chart, or if the TOTAL qualifier is specified, the expression evaluates across full table.

If the table or table equivalent has multiple vertical dimensions, the current column segment will include only rows with the same values as the current row in all dimension columns, except for the column showing the last dimension in the inter-field sort order.

Limitations:

Recursive calls will return NULL.
Sorting on y-values in charts or sorting by expression columns in tables is not allowed when this chart function is used in any of the chart's expressions. These sort alternatives are therefore automatically disabled. When you use this chart function in a visualization or table, the sorting of the visualization will revert back to the sorted input to this function.

Example: Chart expressions
Example	Result
Below( Sum(Sales) )	Returns the value of Sales for the row below the current row.

Example - Below fundamentals

Overview

Open the Data load editor and add the load script below to a new section.

The load script contains:

A dataset which is loaded into a data table called Example.
The following fields in the data table:
- Year
- Sales

Load script

Example:
LOAD * INLINE [
Year, Sales
2019, 1000
2020, 1500
2021, 1200
2022, 1800
2023, 1700
];

Results

Load the data and open a sheet. Create a new table and add this field as a dimension:

Year

Create the following measures:

=Sum(Sales), to find the annual sales.
=Below(Sum(Sales)), to find the sales value for the next year.
=Sum(Sales) - Below(Sum(Sales)), to calculate the variance between the Sales value of the current year and the value of the next year.
=RangeSum(Below(Sales, 1, 2)), to demonstrate a rolling two-year aggregation of the next two years of sales.
=(Sales - Below(Sales)) / Below(Sales), to return the change in Sales as a ratio / percentage. To show this value as a percentage, under Number formatting, select Number > Formatting Simple > 12.34%.

Results table
Year	Sum(Sales)	Below(Sum(Sales))	Sum(Sales) - Below(Sum(Sales))	RangeSum(Below(Sales, 1, 2)	(Sales - Below(Sales)) / Below(Sales)
Totals	7200	-	-	0	-
2019	1000	1500	-500	2700	-33.33%
2020	1500	1200	300	3000	25.00%
2021	1200	1800	-600	3500	-33.00%
2022	1800	1700	100	1700	5.88%
2023	1700	-	-	0	-

Looking at the results, you can compare the Sales values in the current period with the next period.

The Sum(Sales) - Below(Sum(Sales)) measure returns the change in Sales values, comparing the current period to the next period.
The RangeSum(Below(Sales, 1, 2)) measure returns the sum of the next two Sales values.
The (Sales - Below(Sales)) / Below(Sales) measure returns the change in Sales compared to the next period as a percentage.

This function can also be used in charts other than tables, for example bar charts.

Do the following:

Create a bar chart, and then add this field as a dimension:

Year

Create the following measure:

=Sum(Sales) - Below(Sum(Sales)), to return the year-on-year variance.

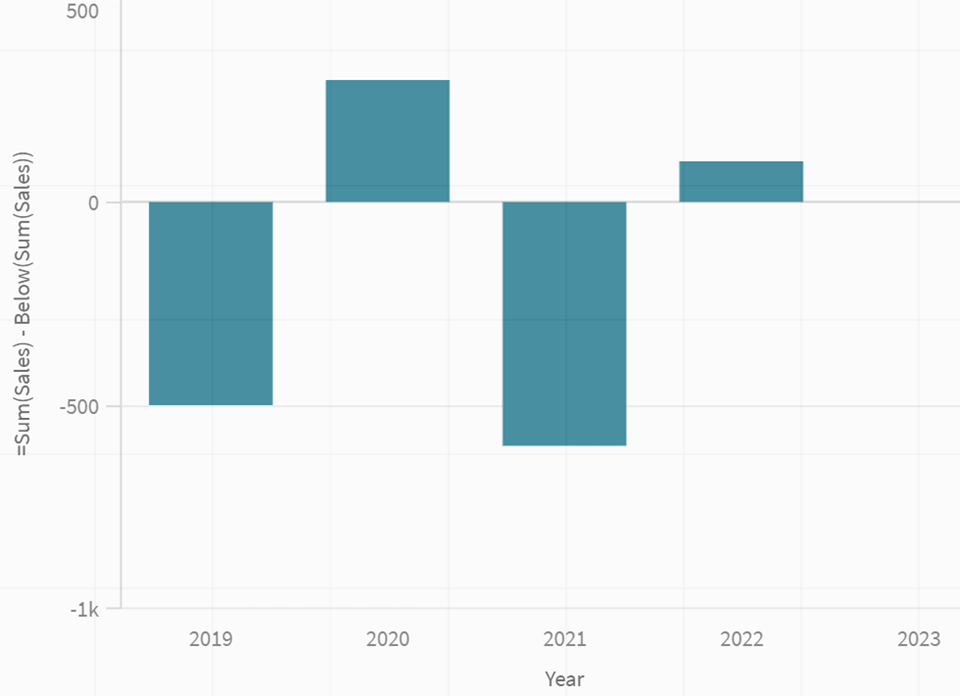

Bar chart showing year-on-year variance for the sum of sales compared to the next year — Bar chart showing results for the Below function

Using the Below function in a bar chart provides a visual comparison of the variance between the sales of the current period versus the next period.

Example - Below scenario

Overview

Open the Data load editor and add the load script below to a new section.

The load script contains:

A dataset which is loaded into a data table called Example.
The following fields in the data table:
- SalesYear
- SalesAmount

Load script

Example:
LOAD * INLINE [
SalesYear, SalesAmount
2019, 500
2020, 800
2021, 400
2022, 700
2023, 600
];

Results

Load the data and open a sheet. Create a new table and add this field as a dimension:

SalesYear

Create the following measures:

=Sum(SalesAmount), to aggregate the sales.
=RangeSum(Below(SalesAmount, 0, NoOfRows() - RowNo())), to calculate a rundown total of the SalesAmount values.

Results table
SalesYear	Sum(SalesAmount)	RangeSum(Below(SalesAmount, 0, NoOfRows() - RowNo()))
Totals	3000	0
2019	500	2400
2020	800	1900
2021	400	1100
2022	700	700
2023	600	0

The results show how you can use the combination of the RangeSum function and the Below function to create a cumulative rundown total.

This function can also be used in charts other than tables, for example bar charts.

Do the following:

Create a bar chart, and then add this field as a dimension:

SalesYear

Create the following measure:

=RangeSum(Below(SalesAmount, 0, NoOfRows() - RowNo())), to return the cumulative rundown sales value.

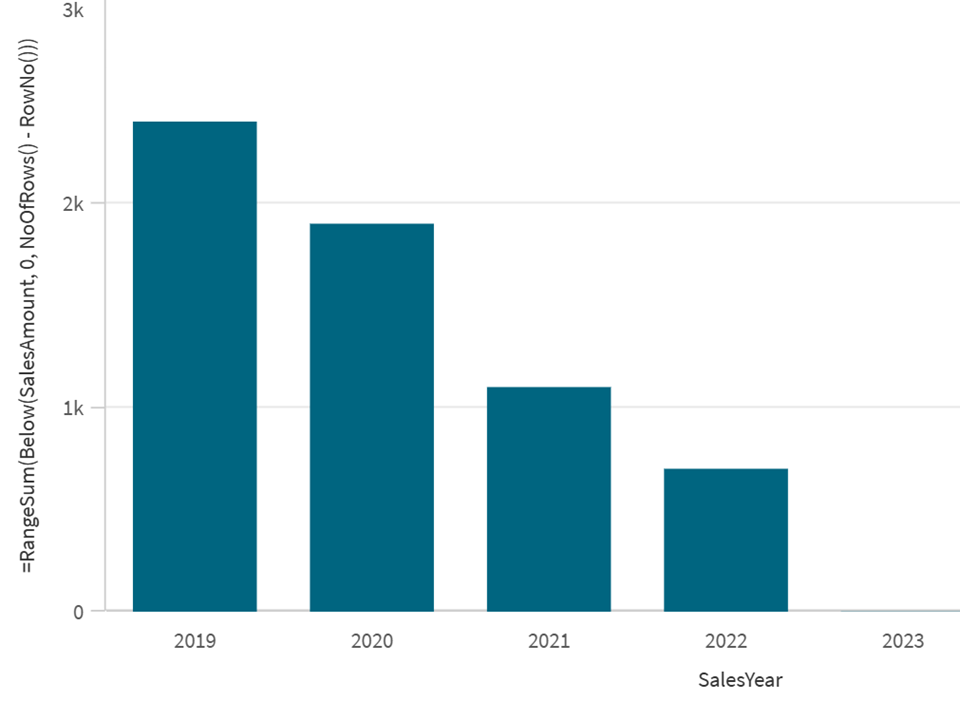

Bar chart showing the cumulative rundown sales values. — Bar chart showing the cumulative rundown sales value by year

Using the Below function in combination with the RangeSum in a bar chart provides a visual display of the cumulative rundown sales values.

Example - Chart expression using Below

Overview

Open the Data load editor and add the load script below to a new section.

The load script contains:

Two data tables called Monthnames and Sales2013.

Load script

Monthnames:
LOAD *, Dual(MonthText,MonthNumber) as Month INLINE [
MonthText, MonthNumber
Jan, 1
Feb, 2
Mar, 3
Apr, 4
May, 5
Jun, 6
Jul, 7
Aug, 8
Sep, 9
Oct, 10
Nov, 11
Dec, 12
];

Sales2013:
Crosstable (MonthText, Sales) LOAD * inline [
Customer|Jan|Feb|Mar|Apr|May|Jun|Jul|Aug|Sep|Oct|Nov|Dec
Astrida|46|60|70|13|78|20|45|65|78|12|78|22
Betacab|65|56|22|79|12|56|45|24|32|78|55|15
Canutility|77|68|34|91|24|68|57|36|44|90|67|27
Divadip|57|36|44|90|67|27|57|68|47|90|80|94
] (delimiter is '|');

Results

Load the data and open a sheet. Create a new table and add this field as a dimension:

Customer

Create the following measures:

=Sum(Sales), to calculate the sum of sales.
=Below(Sum(Sales)), to show the sum of sales in the previous row.
=Sum(Sales)+Below(Sum(Sales)), to sum the sum of sales value with the sum of sales for the customer row below the current row.
=Sum(Sales)+Below(Sum(Sales), 3), to sum the Sum(Sales) value for the current Customer to the value for the Customer that is three rows below.
=If(Sum(Sales)>Below(Sum(Sales)), 'Higher'), to add the label "Higher" to customers whose Sum(Sales) results are greater than the Sum(Sales) of the customer in the row below.

Results table
Customer	Sum(Sales)	Below(Sum(Sales))	Sum(Sales)+Below(Sum(Sales))	Sum(Sales)+Below(Sum(Sales), 3)	If(Sum(Sales)>Below(Sum(Sales)), 'Higher')
Totals	2566	-	-	-	-
Astrida	587	539	1126	1334	Higher
Betacab	539	683	1222	-	-
Canutility	683	757	1440	-	-
Divadip	757	-	-	-	-

For charts with more than one dimension, the results of expressions containing the Above, Below, Top, and Bottom functions depend on the order in which the column dimensions are sorted by Qlik Sense. Qlik Sense evaluates the functions based on the column segments that result from the dimension that is sorted last. The column sort order is controlled in the properties panel under Sorting and is not necessarily the order in which the columns appear in a table. For an example that demonstrates using sort order, see Example - Above scenario based on sort order.

The measure Below(Sum(Sales)) returns NULL for the customer Divadip, because there is no row below it. The result for the row Canutility shows the value of Sum(Sales) for Divadip. The result for Betacab shows the value for Sum(Sales) for Canutility, and so on.

For the measure Sum(Sales)+Below(Sum(Sales)), the row for Astrida returns the result of adding the Sum(Sales) values for the rows Betacab + Astrida (539+587). The result for the row Betacab shows the result of the addition of Sum(Sales) values for Canutility + Betacab (539+683).

The measure Sum(Sales)+Below(Sum(Sales), 3) has the argument offset, set to 3, and has the effect of taking the value in the row three rows below the current row. It adds the Sum(Sales) value for the current Customer to the value from the Customer three rows below. The values for the lowest three Customer rows are null.

The measure IF(Sum(Sales)>Below(Sum(Sales)), 'Higher') returns the value Higher for the customer Astrida because their sales results are greater than the sum of sales of the customer in the row below, Betacab.

This function can also be used in charts other than tables, for example bar charts.

For other chart types, convert the chart to the straight table equivalent so you can easily interpret which row the function relates to.

Example - Using the Below function with RangeAvg

Overview

The Below function can be used as input to the range functions. This example uses the function in a RangeAvg.

Open the Data load editor and add the load script below to a new section.

The load script contains:

Two data tables called Monthnames, Sales2013.

Load script

Monthnames:
LOAD *, Dual(MonthText,MonthNumber) as Month INLINE [
MonthText, MonthNumber
Jan, 1
Feb, 2
Mar, 3
Apr, 4
May, 5
Jun, 6
Jul, 7
Aug, 8
Sep, 9
Oct, 10
Nov, 11
Dec, 12
];

Sales2013:
Crosstable (MonthText, Sales) LOAD * inline [
Customer|Jan|Feb|Mar|Apr|May|Jun|Jul|Aug|Sep|Oct|Nov|Dec
Astrida|46|60|70|13|78|20|45|65|78|12|78|22
Betacab|65|56|22|79|12|56|45|24|32|78|55|15
Canutility|77|68|34|91|24|68|57|36|44|90|67|27
Divadip|57|36|44|90|67|27|57|68|47|90|80|94
] (delimiter is '|');

Results

Load the data and open a sheet. Create a new table and add this field as a dimension:

Customer

Create the following measure:

=RangeAvg (Below(Sum(Sales),1,3))

Results table
Customer	RangeAvg (Below(Sum(Sales),1,3))
Totals	-
Astrida	660
Betacab	720
Canutility	757
Divadip	-

In the arguments for the Below function, offset is set to 1 and count is set to 3. The function finds the results of the expression Sum(Sales) on the three rows immediately below the current row in the column segment (where there is a row). These three values are used as input to the RangeAvg function, which finds the average of the values in the supplied range of numbers.
