Pivot processor
Pivots field values into columns.
For data stored in tables, the Pivot processor allows you to rearrange the table so that values from a field are stored as fields instead, highlighting data differently according to your needs.
Usage
-
The Pivot processor requires one input flow and can generate only one output flow.
-
Ensure that enough data is loaded in the preview to generate all the output columns. Use the cog icon in the Preview panel to set the load limit.
-
When applying the pivot processor configuration, the data flow has to run in the background first.
Properties
Properties to configure to pivot your columns.
| Property | Configuration |
|---|---|
| Field to pivot |
Use the check box to select the field to pivot into a column. |
| Value field |
Use the check box to select the field that contains the values that will be used in the pivoted field. |
| Aggregation function |
Select the operation you want to apply on the values for your new fields:
|
To rename the processor or edit its description, point your mouse over the name or description to change in the Properties panel and click the
Edit icon.
Example

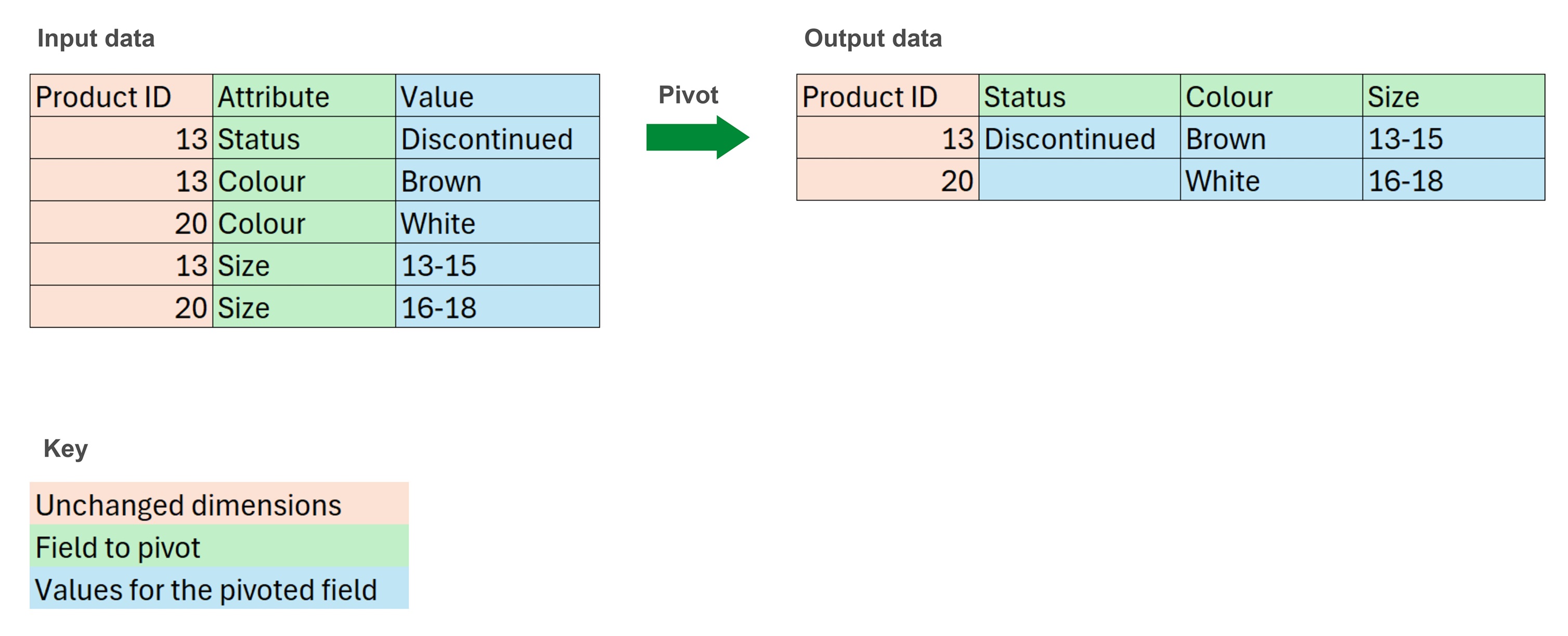

The following example describes the effect of the pivot function on a table containing some attributes about inventory items (ID, size colour, availability), but organized in rows, where you would need multiple rows to get all information about a specific product.
In this case, you want to use the different values of the Attribute field to create new fields, and fill them with the values contained in the Value field. To get this result, configure the processor with Attribute as Field to pivot, and use the Value field as Value field. You do not need to add any aggregation operation, as you want to have every value displayed according to the Product ID.
