Calculate fields processor

Adds new fields based on Qlik script expressions.

The Calculate fields processor allows you to create new fields in the schema of your data, and fill each of them using Qlik script expressions. Your script can use everything from the input schema, allowing you to use combinations or transformed versions of existing fields.

Usage

• The Calculate fields processor requires one input flow and can generate only one output flow.

• Click the + icon in the processor configuration panel to create more than one calculated field.

Properties

Properties to configure to calculate new fields.

To rename the processor or edit its description, point your mouse over the name or description to change in the Properties panel and click the Edit icon.

Using the expression editor

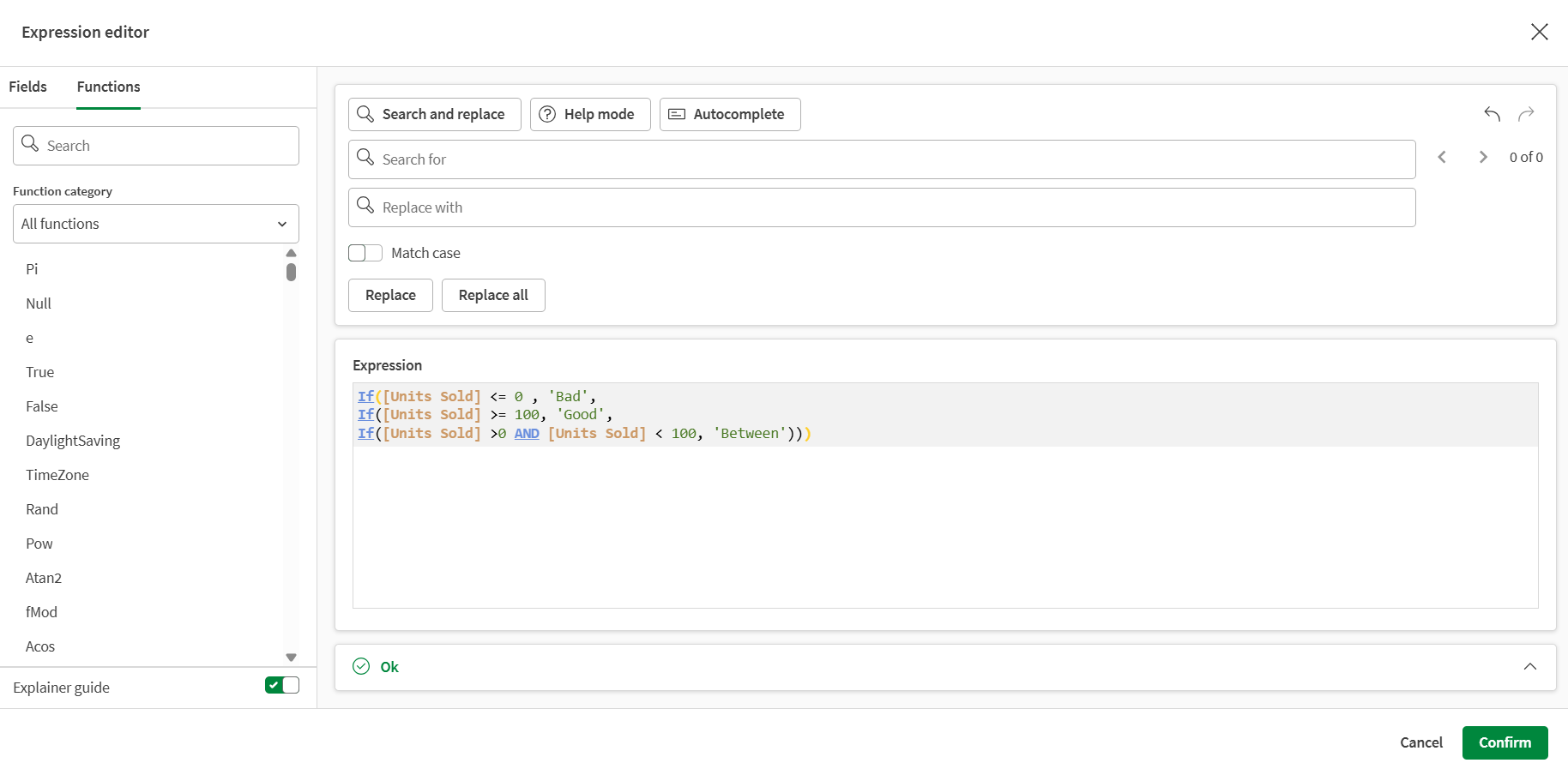

Clicking the Open editor button in the configuration panel opens the Expression editor, a powerful script editor to help you create your new fields. Easily insert field names or functions, open documentation and check the validity of your expressions.

In the left panel, you can view the field currently loaded in your data flow and browse a wide range of Qlik script functions. This panel is organized in two tabs:

• Fields, where the fields available at this point of the flow are listed. Point your mouse over any of the field names and click + to directly insert it in the expression.

• Functions, where you can browse Qlik functions. You can use the search field to look for a specific function, or use the Function category drop-down to filter them.

  Point your mouse over any of the functions and click + to directly insert it in the expression.

• If you select the Explainer guide toggle, a short description and a link to the documentation will be displayed when clicking a function.

In the top panel, you can enable or disable three tools to help and guide you while writing script, as well as undo and redo buttons to fix potential mistakes.

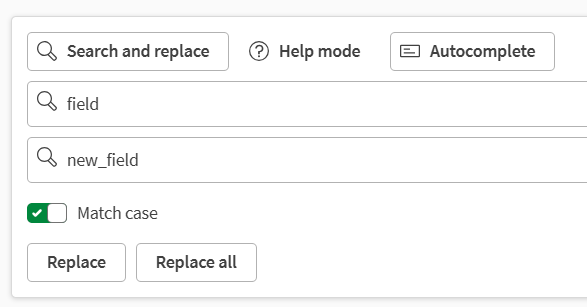

• Search and replace, to automatically look for specific values and replace them if needed.

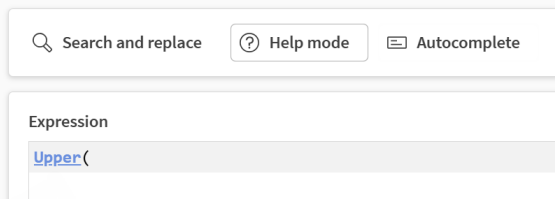

• Help mode, to turn any function you write in the script into clickable links that will take you to the documentation.

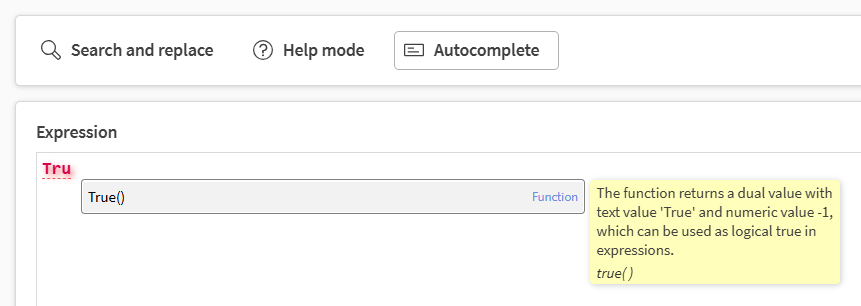

• Autocomplete, to display suggestions as you type, with a short description and example of a function.

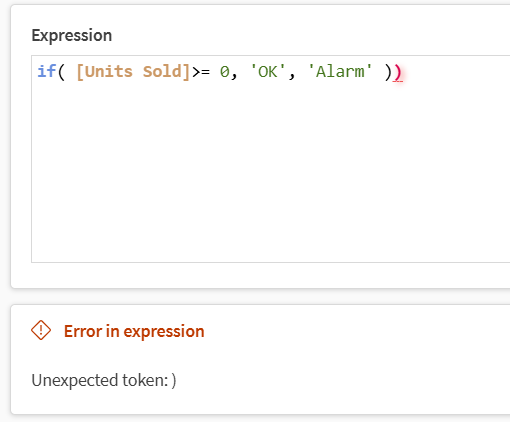

The bottom panel describes any potential error with your script, such as incorrect field names or invalid expressions.

When the status panel shows a green Ok, your expression is valid. Click Confirm to use this expression for your calculated field and go back to the data flow editor. You can then validate the processor configuration.

Examples

• Setting a incremental value to use as id for the new field rows:

  RecNo()

  For more information, see Counter functions.

• Using if/then/else conditions. In this example, you have loaded data with temperature, and want to include additional information depending on the values:


  If(Temperature <= 0 , 'Freezing',
  If(Temperature >= 100, 'Boiling',
  If(Temperature >0 AND Temperature < 100, 'Between')))

  For more information, see if - script and chart function.

• Performing multiple math operations in a single processor. In a dataset containing fields with a number of units sold, as well as the unit price and unit cost, then you can create two new fields for the total revenue and total cost.

  1. In the first field, enter total_revenue as the new field name, and the following expression:

     [Units Sold] * [Unit Price]

  2. Click the + icon in the processor configuration panel to create another calculated field.

  3. In the second field, enter total_cost as the new field name, and the following expression:

     [Units Sold] * [Unit Cost]

For more examples of script expressions, see Regular statements and Script and chart functions.
