Estensioni e annotazioni di Talend
Durante l'esportazione di un'API, è possibile scegliere di includere le estensioni di Talend per OpenAPI Specification, o le annotazioni di Talend per RAML. Queste consentono di mantenere la struttura dell'API così come definita in API Designer.

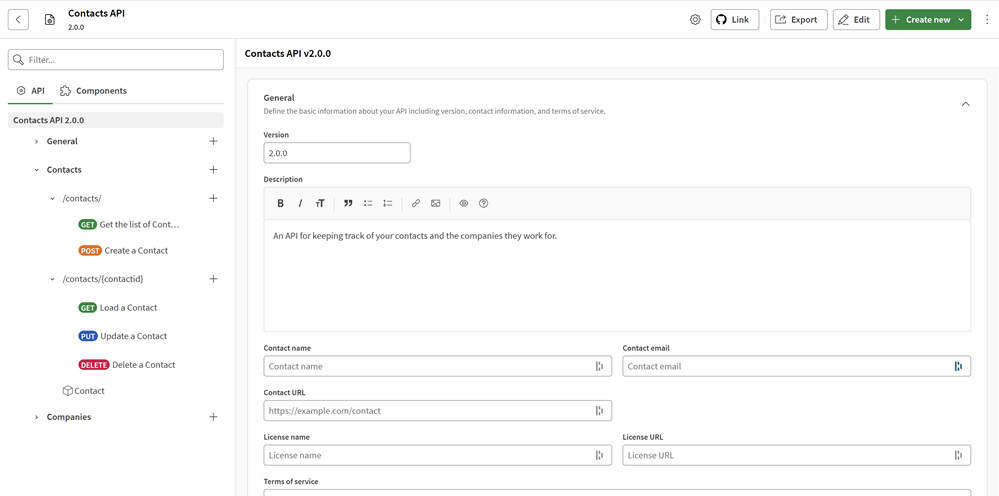

Ad esempio, in Contacts API, le risorse e le operazioni sono ordinate in sezioni e i blocchi di testo vengono utilizzati per aggiungere informazioni.
Se si esporta questa definizione senza le estensioni o le annotazioni di Talend, le sezioni e i blocchi di testo non vengono esportati. Tuttavia, con le estensioni o le annotazioni, vengono inclusi nel codice.
Le informazioni della sezione vengono aggiunte a qualsiasi elemento contenuto in una sezione:
x-talend:
section: "Companies"I blocchi di testo vengono aggiunti alla fine del file:
texts:
3a36b8ba-2969-46f0-a36e-9d715eeece36:
title: "Authentication"
content: "This API is secured using Basic Authentication.\n\nAll **read operations are open** and don't require authentication. However, all **write operations require authentication**. "
section: "General"
612e4b7f-0530-4835-8a47-f580869c67df:
title: "Error handling"
content: "This API uses standard HTTP status codes to indicate the status of a response.\n\nThere are two main categories of error responses. Each have a different response payload structure.\n\n* Simple errors\n* Detailed errors\n\n\n# Simple errors\n\n| Name | Code | Description |\n| -------- | -------- | -------- |\n| Bad request | 400 | The request was unacceptable |\n| Unauthorized | 401 | The request has not been applied because it lacks valid authentication credentials for the target resource. |\n| Forbidden | 403 | The server understood the request, but is refusing to fulfill it |\n| Not Found | 404 | The server has not found anything matching the request URI |\n| Not acceptable | 406 | The server is unable to return a response in the format that was requested by the client |\n| Unsupported Media Type | 415 | The server is refusing to service the request because the entity of the request is in a format not supported by the requested resource for the requested method |\n| Too many requests | 429 | Too many requests hit the API too quickly |\n| Server error | 500 | A technical error occured |\n\n\n\n\n\n\n# Detailed errors\n| Name | Code | Description |\n| -------- | -------- | -------- |\n| Unprocessable entity | 422 | The server understands the content type of the request entity, and the syntax of the request entity is correct, but was unable to process the contained instructions. |\n\n\n\n\n"
| Server error | 500 | A technical error occurred |\n\n\n\n\n\n\n# Detailed errors\n| Name | Code | Description |\n| -------- | -------- | -------- |\n| Unprocessable entity | 422 | The server understands the content type of the request entity, and the syntax of the request entity is correct, but was unable to process the contained instructions. |\n\n\n\n\n"
section: "General"
