Example - Creating a profit and loss table with vertical bands

In this example, we use vertical bands to create a profit and loss report outlining the total sales and profit for each year in the app.

Refer to the example app sources here: Example materials - In-app reporting. Upload the app and data files into a space, and then reload the app. You are ready to complete the example.

Step 1: Create data binding

Do the following:

1. Create a new PixelPerfect template.

2. Open the Field List menu available from the right-side panel in the designer.



3. Hover your cursor over Levels, and then click .

4. Expand the Sales Tables sheet. Next to P&L by Year, click .

   The data binding is created.

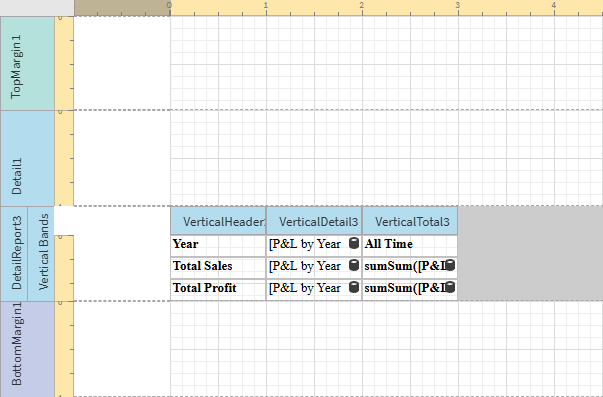

Step 2: Create the banded structure

Do the following:

1. On the design surface, right-click anywhere within the Detail1 band and click Insert Band > DetailReport.

   A new DetailReport band is inserted below Detail1.

2. Right-click the DetailReport band. Click Insert Vertical Band > VerticalHeader.

   VerticalHeader and VerticalDetail bands are added.

3. Right-click the DetailReport band again. Click Insert Vertical Band > VerticalTotal.

   A VerticalTotal band is added.

You can reduce the width of the bands to save space.

Step 3: Connect the structure to data binding

Do the following:

1. Select the DetailReport band that contains the vertical bands.

2. Click the gear icon at the edge of the design surface.



3. In the menu, select the P&L by Year level as the Data Member.

   Tip noteAlternatively, click at the far right of the designer. Add the Data Member under Detail Report Tasks.

Step 4: Add headers

Do the following:

1. From the toolbox on the left side of the designer, drag three Label objects onto the VerticalHeader1 band, stacking them horizontally as a series of three rows.

2. Double-click each label and give them the following fixed text, respectively:

   • Year

   • Total Sales

   • Total Profit

3. From the toolbox on the left side of the designer, drag a Label object onto the top of VerticalTotal1, arranging it so it is parallel with the Year label. Double-click the label and give it the following fixed text: All Time

Step 5: Add data to template

Do the following:

1. Open the Field List menu, and expand Levels.

2. Within the P&L by Year level, drag the following fields onto the VerticalDetail1 band, stacking them horizontally as a series of three rows. They should be in this order:

   • OrderYear

   • Sales

   • Profit

3. Select the Sales field you just added.

4. Click the gear icon at the edge of the design surface.

5. In the popout menu, click the ellipsis (three dots) menu under Text Format String.

6. The Format String Editor dialog opens. Choose Currency, and adjust the decimal points. Click OK.

7. Repeat this process for the Profit field.

8. Copy the Sales and Profit fields, and paste them onto the VerticalTotal1 band so that the pasted fields are parallel to the original fields.

Step 6: Configure the total calculations

We need to configure the newly pasted Sales and Profit fields to summarize all data from the table columns.

Do the following:

1. Select the Sales field you pasted within the VerticalTotal1 band.

2. Open the Properties menu from the right side panel. Expand Data, and then expand Summary.

3. Set Running to Report.

4. Return to the design surface. Click the bold f icon near the selected Sales field to open the Expression Editor.

5. In the Expression Editor, enter the following expression:

   sumSum([P&L by Year (P&L by Year_Level).Sales])

6. Repeat this entire process for the Profit field you pasted within the VerticalTotal1 band, but instead use this expression:

   sumSum([P&L by Year (P&L by Year_Level).Profit])

Customize font properties in the Properties menu under Appearance > Font.

Click Save template, and then click Preview report. Download the report and open it.
