Slack (v1)

Last updated: 9/15/2026

Slack is in beta
Slack is currently in beta. The info in this guide is subject to change.

Slack is supported by the Singer community
This integration is powered by Singer's Slack tap. For support, visit the GitHub repo or join the Singer Slack.

Slack integration summary

Stitch’s Slack integration replicates data from a single Slack workspace using the Slack Web API. To replicate data from multiple workspaces, create an additional Slack integration for each workspace.

Refer to the Schema section for a list of objects available for replication.

Slack feature snapshot

A high-level look at Stitch's Slack (v1) integration, including release status, useful links, and the features supported in Stitch.

STITCH
Release status	Beta	Supported by	Singer Community
Stitch plan	Standard	API availability	Available
Singer GitHub repository	singer-io/tap-slack
REPLICATION SETTINGS
Anchor Scheduling	Supported	Advanced Scheduling	Supported
Table-level reset	Unsupported	Configurable Replication Methods	Unsupported
DATA SELECTION
Table selection	Supported	Column selection	Supported
Select all	Supported
TRANSPARENCY
Extraction Logs	Supported	Loading Reports	Supported

Connecting Slack

Step 1: Create a Slack app and retrieve a verification token

Connecting multiple workspaces? You’ll need to create a new Slack app and Stitch Slack integration for each workspace. Follow this guide in its entirety for each workspace you want to replicate data from.

Step 1.1: Create the app
Step 1.2: Grant relevant scopes to the app
Step 1.3: Install the app to your workspace
Step 1.4: Retrieve the app’s bot user OAuth access token

Step 1.1: Create the app

Navigate to the Slack App site.
Click Create an App.
Enter a name for the app and select the workspace you want to replicate data from.
Click Create App.

Step 1.2: Grant relevant scopes to the app

Next, you’ll grant the required permissions to the app you created in the previous step.

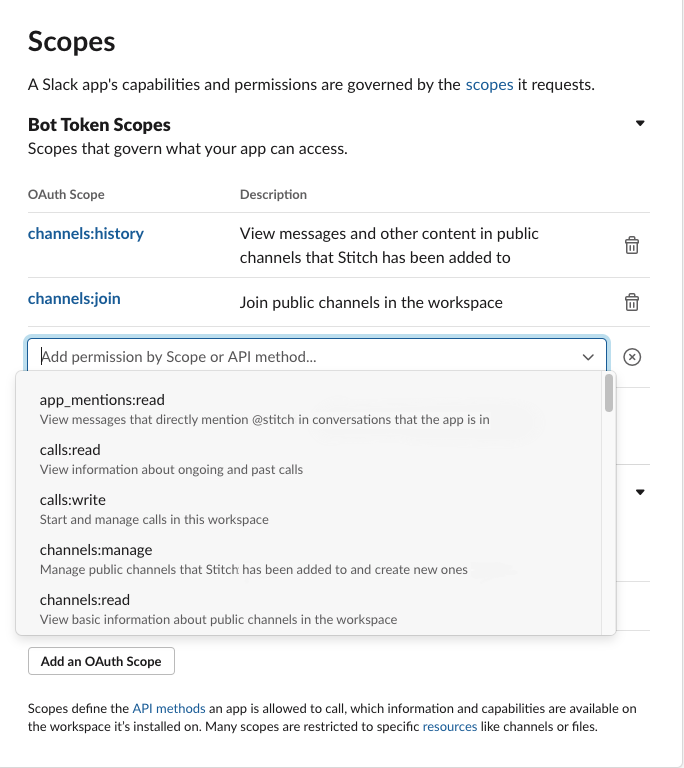

The add permission by scope or API method menu, expanded, in the Bot Token Scopes section of the Slack App Scopes page

The app you created should be selected in the drop-down menu near the top-left corner of the page. If it isn’t, select it.
Click Features > OAuth & Permissions in the left side menu.
Scroll to the Scopes section.
In the Bot Token Scopes section, click the Add an OAuth Scope button.
In the field that appears, search for the following scopes:
- channels:history
- channels:join
- channels:read
- files:read
- groups:read
- links:read
- reactions:read
- remote_files:read
- remote_files:write
- team:read
- useergroups:read
- users.profile:read
- users:read
- users:read.email
Slack will automatically save the changes each time a scope is added.
Repeat steps 4 and 5 until all the scopes have been added.

Step 1.3: Install the app to your workspace

If app approval is enabled for your workspace and you don’t have the required permissions to install apps, you may need to contact a Workspace Owner or App Manager in your workspace to complete this step. Refer to Slack’s documentation for more info.

After the required scopes are added to the app, you’ll need to install it to your Slack workspace. This is required to successfully connect to Stitch.

Scroll up to the OAuth Tokens & Redirect URLs section of the OAuth & Permissions page.
In this section, click the Install App to Workspace button.
Complete the steps that follow to install the app or submit a request to your Workspace Owner(s) for approval.

Step 1.4: Retrieve the app's bot user OAuth access token

After the app is successfully installed to your Slack workspace, a Tokens for Your Workspace section containing a Bot User OAuth Access Token field will display on the page:

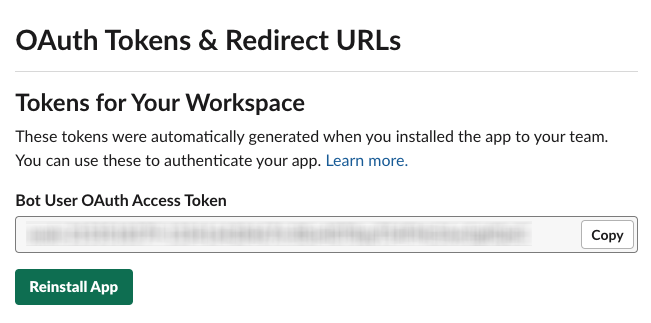

The Bot User OAuth Access Token in the Tokens for Your Workspace section of the OAuth Tokens & Redirect URLs App page in Slack

Keep the token readily available for the next step.

Step 2: Add Slack as a Stitch data source

Sign into your Stitch account.
On the Stitch Dashboard page, click the Add Integration button.
Click the Slack icon.
Enter a name for the integration. This is the name that will display on the Stitch Dashboard for the integration; it’ll also be used to create the schema in your destination.

For example, the name “Stitch Slack” would create a schema called stitch_slack in the destination. Note: Schema names cannot be changed after you save the integration.
In the Token field, paste the bot user OAuth access token you copied from Step 1.4.
Check the Join public channels box if you’d like to replicate data for all public channels in the workspace you’re connecting. Otherwise, only data for channels you’ve personally joined will be replicated.
Check the Include private channels box if you’d like to replicate data for private channels in the workspace.
Check the Exclude archived channels box if you don’t want to replicate data from archived channels.

Step 3: Define the historical replication start date

The Sync Historical Data setting defines the starting date for your Slack integration. This means that data equal to or newer than this date will be replicated to your data warehouse.

Change this setting if you want to replicate data beyond Slack’s default setting of 1 year. For a detailed look at historical replication jobs, check out the Syncing Historical SaaS Data guide.

Step 4: Create a replication schedule

Replication schedules affect the time Extraction begins, not the time to data loaded. Refer to the Replication Scheduling documentation for more information.

In the Replication Frequency section, you’ll create the integration’s replication schedule. An integration’s replication schedule determines how often Stitch runs a replication job, and the time that job begins.

Slack integrations support the following replication scheduling methods:

Replication Frequency
Anchor Scheduling
Advanced Scheduling using Cron (Advanced or Premium plans only)

To keep your row usage low, consider setting the integration to replicate less frequently. See the Understanding and Reducing Your Row Usage guide for tips on reducing your usage.

Step 5: Set objects to replicate

Is an object missing or not replicating? Verify that the object meets the requirements for selection and replication.

The last step is to select the tables and columns you want to replicate. Learn about the available tables for this integration.

Note: If a replication job is currently in progress, new selections won’t be used until the next job starts.

For Slack integrations, you can select:

Individual tables and columns
All tables and columns

Click the tabs to view instructions for each selection method.

In the integration’s Tables to Replicate tab, locate a table you want to replicate.
To track a table, click the checkbox next to the table’s name. A blue checkmark means the table is set to replicate.
To track a column, click the checkbox next to the column’s name. A blue checkmark means the column is set to replicate.
Repeat this process for all the tables and columns you want to replicate.
When finished, click the Finalize Your Selections button at the bottom of the screen to save your selections.

Important: Using the Select All feature will overwrite any previous selections. However, selections aren’t final until Finalize Your Selections is clicked. Clicking Cancel will restore your previous selections. Refer to the Select All guide for more info about this feature.

Click into the integration from the Stitch Dashboard page.
Click the Tables to Replicate tab.
In the list of tables, click the box next to the Table Names column.
In the menu that displays, click Track all Tables and Fields:

The Track all Tables and Fields menu in the Tables to Replicate tab
Click the Finalize Your Selections button at the bottom of the page to save your data selections.

Initial and historical replication jobs

After you finish setting up Slack, its Sync Status may show as Pending on either the Stitch Dashboard or in the Integration Details page.

For a new integration, a Pending status indicates that Stitch is in the process of scheduling the initial replication job for the integration. This may take some time to complete.

Initial replication jobs with Anchor Scheduling

If using Anchor Scheduling, an initial replication job may not kick off immediately. This depends on the selected Replication Frequency and Anchor Time. Refer to the Anchor Scheduling documentation for more information.

Free historical data loads

The first seven days of replication, beginning when data is first replicated, are free. Rows replicated from the new integration during this time won’t count towards your quota. Stitch offers this as a way of testing new integrations, measuring usage, and ensuring historical data volumes don’t quickly consume your quota.

Replication will continue after the seven days are over. If you’re no longer interested in this source, be sure to pause or delete the integration to prevent unwanted usage.

Slack replication

Workspace replication

Stitch can only replicate data from one Slack workspace at a time. In order to replicate multiple workspaces, you will need to create integrations for each workspace.

Slack table reference

Schemas and versioning

Schemas and naming conventions can change from version to version, so we recommend verifying your integration’s version before continuing.

The schema and info displayed below is for version 1 of this integration.

This is the latest version of the Slack integration.

Table and column names in your destination

Depending on your destination, table and column names may not appear as they are outlined below.

For example: Object names are lowercased in Redshift (CusTomERs > customers), while case is maintained in PostgreSQL destinations (CusTomERs > CusTomERs). Refer to the Loading Guide for your destination for more info.

channel_members

The channel_members table contain info about members of channels in your Slack workspace. Channels include conversations, channels, and direct messages in your Slack workspace.

Replication Method

Full Table

Primary Keys

channel_id

user_id

Useful links

Slack documentation

channel_members schema on GitHub

Slack API method

Join channel_members with	on
channels	channel_members.channel_id = channels.id channel_members.user_id = channels.creator channel_members.user_id = channels.members
files	channel_members.channel_id = files.channels channel_members.channel_id = files.pinned_to channel_members.user_id = files.user
messages	channel_members.channel_id = messages.channel_id channel_members.channel_id = messages.pinned_to channel_members.user_id = messages.reply_users channel_members.user_id = messages.reactions.users channel_members.user_id = messages.user
remote_files	channel_members.channel_id = remote_files.channels channel_members.channel_id = remote_files.pinned_to channel_members.user_id = remote_files.user
threads	channel_members.channel_id = threads.channel_id channel_members.user_id = threads.user channel_members.user_id = threads.reply_users
user_groups	channel_members.user_id = user_groups.members channel_members.user_id = user_groups.purpose.creator channel_members.user_id = user_groups.topic.creator
users	channel_members.user_id = users.id

channel_id

STRING

user_id

STRING

channels

The channels table contains info about the channels in your Slack workspace. This includes conversations, channels, and direct messages.

Note: Some types of channels - for example, private or archived channels - will be replicated only if the appropriate settings are configured in the integration’s settings. Refer to the Slack setup steps for more info.

Replication Method

Full Table

Primary Key

Useful links

Slack documentation

channels schema on GitHub

Slack API method

Join channels with	on
channel_members	channels.id = channel_members.channel_id channels.creator = channel_members.user_id channels.members = channel_members.user_id
files	channels.id = files.channels channels.id = files.pinned_to channels.pending_connected_team_ids = files.source_team channels.pending_connected_team_ids = files.user_team channels.creator = files.user channels.members = files.user
messages	channels.id = messages.channel_id channels.id = messages.pinned_to channels.pending_connected_team_ids = messages.bot_profile.team_id channels.pending_connected_team_ids = messages.team channels.pending_connected_team_ids = messages.source_team channels.pending_connected_team_ids = messages.user_team channels.creator = messages.reply_users channels.members = messages.reply_users channels.creator = messages.reactions.users channels.members = messages.reactions.users channels.creator = messages.user channels.members = messages.user
remote_files	channels.id = remote_files.channels channels.id = remote_files.pinned_to channels.pending_connected_team_ids = remote_files.source_team channels.pending_connected_team_ids = remote_files.user_team channels.creator = remote_files.user channels.members = remote_files.user
threads	channels.id = threads.channel_id channels.pending_connected_team_ids = threads.team channels.creator = threads.user channels.members = threads.user channels.creator = threads.reply_users channels.members = threads.reply_users
teams	channels.pending_connected_team_ids = teams.id
users	channels.pending_connected_team_ids = users.team_id channels.creator = users.id channels.members = users.id
user_groups	channels.creator = user_groups.members channels.members = user_groups.members channels.creator = user_groups.purpose.creator channels.members = user_groups.purpose.creator channels.creator = user_groups.topic.creator channels.members = user_groups.topic.creator

channel_id

STRING

created

DATE-TIME

creator

STRING

is_archived

BOOLEAN

is_channel

BOOLEAN

is_ext_shared

BOOLEAN

is_general

BOOLEAN

is_group

BOOLEAN

is_im

BOOLEAN

is_member

BOOLEAN

is_mpim

BOOLEAN

is_org_shared

BOOLEAN

is_pending_ext_shared

BOOLEAN

is_private

BOOLEAN

is_shared

BOOLEAN

members

ARRAY

name

STRING

name_normalized

STRING

num_members

INTEGER

parent_conversation

STRING

pending_connected_team_ids

ARRAY

pending_shared

ARRAY

previous_names

ARRAY

purpose

OBJECT

creator

STRING

last_set

DATE-TIME

value

STRING

shared_team_ids

ARRAY

topic

OBJECT

creator

STRING

last_set

DATE-TIME

value

STRING

unlinked

DATE-TIME

files

The files table contains info about Slack team files.

Replication Method	Key-based Incremental
Primary Key	id
Replication Key	updated
Useful links	Slack documentation files schema on GitHub Slack API method

Join files with	on
channels	files.channels = channels.id files.pinned_to = channels.id files.source_team = channels.pending_connected_team_ids files.user_team = channels.pending_connected_team_ids files.user = channels.creator files.user = channels.members
channel_members	files.channels = channel_members.channel_id files.pinned_to = channel_members.channel_id files.user = channel_members.user_id
messages	files.channels = messages.channel_id files.pinned_to = messages.channel_id files.channels = messages.pinned_to files.pinned_to = messages.pinned_to files.id = messages.file_ids files.source_team = messages.bot_profile.team_id files.user_team = messages.bot_profile.team_id files.source_team = messages.team files.user_team = messages.team files.source_team = messages.source_team files.user_team = messages.source_team files.source_team = messages.user_team files.user_team = messages.user_team files.user = messages.reply_users files.user = messages.reactions.users files.user = messages.user
remote_files	files.channels = remote_files.channels files.pinned_to = remote_files.channels files.channels = remote_files.pinned_to files.pinned_to = remote_files.pinned_to files.groups = remote_files.groups files.source_team = remote_files.source_team files.user_team = remote_files.source_team files.source_team = remote_files.user_team files.user_team = remote_files.user_team files.user = remote_files.user
threads	files.channels = threads.channel_id files.pinned_to = threads.channel_id files.source_team = threads.team files.user_team = threads.team files.user = threads.user files.user = threads.reply_users
user_groups	files.groups = user_groups.id files.groups = user_groups.parent_group files.user = user_groups.members files.user = user_groups.purpose.creator files.user = user_groups.topic.creator
teams	files.source_team = teams.id files.user_team = teams.id
users	files.source_team = users.team_id files.user_team = users.team_id files.user = users.id

channels

ARRAY

comments_count

INTEGER

created

DATE-TIME

date_delete

DATE-TIME

display_as_bot

BOOLEAN

editable

BOOLEAN

editor

STRING

external_id

STRING

external_type

STRING

external_url

STRING

filetype

STRING

groups

ARRAY

has_rich_preview

BOOLEAN

STRING

image_exif_rotation

INTEGER

ims

ARRAY

is_external

BOOLEAN

is_public

BOOLEAN

is_starred

BOOLEAN

is_tombstoned

BOOLEAN

last_editor

STRING

mimetype

STRING

mode

STRING

name

STRING

non_owner_editable

BOOLEAN

num_stars

INTEGER

original_h

INTEGER

original_w

INTEGER

permalink

STRING

permalink_public

STRING

pinned_info

OBJECT

pinned_to

ARRAY

pretty_type

STRING

preview

STRING

public_url_shared

BOOLEAN

size

INTEGER

source_team

STRING

state

STRING

thumb_1024

STRING

thumb_1024_h

INTEGER

thumb_1024_w

INTEGER

thumb_160

STRING

thumb_360

STRING

thumb_360_h

INTEGER

thumb_360_w

INTEGER

thumb_480

STRING

thumb_480_h

INTEGER

thumb_480_w

INTEGER

thumb_64

STRING

thumb_720

STRING

thumb_720_h

INTEGER

thumb_720_w

INTEGER

thumb_80

STRING

thumb_800

STRING

thumb_800_h

INTEGER

thumb_800_w

INTEGER

thumb_960

STRING

thumb_960_h

INTEGER

thumb_960_w

INTEGER

thumb_tiny

STRING

timestamp

DATE-TIME

title

STRING

updated

DATE-TIME

url_private

STRING

url_private_download

STRING

user

STRING

user_team

STRING

username

STRING

messages

The messages table contains the history of messages and events in conversations in your Slack workspace.

Replication Method	Key-based Incremental
Primary Keys	channel_id ts
Replication Key	ts
Useful links	Slack documentation messages schema on GitHub Slack API method

Join messages with	on
channels	messages.channel_id = channels.id messages.pinned_to = channels.id messages.bot_profile.team_id = channels.pending_connected_team_ids messages.team = channels.pending_connected_team_ids messages.source_team = channels.pending_connected_team_ids messages.user_team = channels.pending_connected_team_ids messages.reply_users = channels.creator messages.reactions.users = channels.creator messages.user = channels.creator messages.reply_users = channels.members messages.reactions.users = channels.members messages.user = channels.members
channel_members	messages.channel_id = channel_members.channel_id messages.pinned_to = channel_members.channel_id messages.reply_users = channel_members.user_id messages.reactions.users = channel_members.user_id messages.user = channel_members.user_id
files	messages.channel_id = files.channels messages.pinned_to = files.channels messages.channel_id = files.pinned_to messages.pinned_to = files.pinned_to messages.file_ids = files.id messages.bot_profile.team_id = files.source_team messages.team = files.source_team messages.source_team = files.source_team messages.user_team = files.source_team messages.bot_profile.team_id = files.user_team messages.team = files.user_team messages.source_team = files.user_team messages.user_team = files.user_team messages.reply_users = files.user messages.reactions.users = files.user messages.user = files.user
remote_files	messages.channel_id = remote_files.channels messages.pinned_to = remote_files.channels messages.channel_id = remote_files.pinned_to messages.pinned_to = remote_files.pinned_to messages.bot_profile.team_id = remote_files.source_team messages.team = remote_files.source_team messages.source_team = remote_files.source_team messages.user_team = remote_files.source_team messages.bot_profile.team_id = remote_files.user_team messages.team = remote_files.user_team messages.source_team = remote_files.user_team messages.user_team = remote_files.user_team messages.reply_users = remote_files.user messages.reactions.users = remote_files.user messages.user = remote_files.user
threads	messages.channel_id = threads.channel_id messages.pinned_to = threads.channel_id messages.bot_profile.team_id = threads.team messages.team = threads.team messages.source_team = threads.team messages.user_team = threads.team messages.reply_users = threads.user messages.reactions.users = threads.user messages.user = threads.user messages.reply_users = threads.reply_users messages.reactions.users = threads.reply_users messages.user = threads.reply_users
teams	messages.bot_profile.team_id = teams.id messages.team = teams.id messages.source_team = teams.id messages.user_team = teams.id
users	messages.bot_profile.team_id = users.team_id messages.team = users.team_id messages.source_team = users.team_id messages.user_team = users.team_id messages.reply_users = users.id messages.reactions.users = users.id messages.user = users.id
user_groups	messages.reply_users = user_groups.members messages.reactions.users = user_groups.members messages.user = user_groups.members messages.reply_users = user_groups.purpose.creator messages.reactions.users = user_groups.purpose.creator messages.user = user_groups.purpose.creator messages.reply_users = user_groups.topic.creator messages.reactions.users = user_groups.topic.creator messages.user = user_groups.topic.creator

blocks

ARRAY

type

STRING

bot_id

STRING

bot_profile

OBJECT

app_id

STRING

deleted

BOOLEAN

STRING

name

STRING

team_id

STRING

updated

DATE-TIME

channel_id

STRING

client_msg_id

STRING

display_as_bot

BOOLEAN

file_id

STRING

file_ids

ARRAY

icons

OBJECT

emoji

STRING

inviter

STRING

is_delayed_message

BOOLEAN

is_intro

BOOLEAN

is_starred

BOOLEAN

last_read

DATE-TIME

latest_reply

STRING

name

STRING

old_name

STRING

parent_user_id

STRING

permalink

STRING

pinned_to

ARRAY

purpose

STRING

reactions

ARRAY

count

INTEGER

name

STRING

users

ARRAY

reply_count

INTEGER

reply_users

ARRAY

reply_users_count

INTEGER

source_team

STRING

subscribed

BOOLEAN

subtype

STRING

team

STRING

text

STRING

thread_ts

STRING

topic

STRING

DATE-TIME

type

STRING

unread_count

INTEGER

upload

BOOLEAN

user

STRING

user_team

STRING

username

STRING

remote_files

The remote_files table contains info about remote files added to Slack.

Replication Method	Key-based Incremental
Primary Key	id
Replication Key	updated
Useful links	remote_files schema on GitHub Slack API method

Join remote_files with	on
channels	remote_files.channels = channels.id remote_files.pinned_to = channels.id remote_files.source_team = channels.pending_connected_team_ids remote_files.user_team = channels.pending_connected_team_ids remote_files.user = channels.creator remote_files.user = channels.members
channel_members	remote_files.channels = channel_members.channel_id remote_files.pinned_to = channel_members.channel_id remote_files.user = channel_members.user_id
files	remote_files.channels = files.channels remote_files.pinned_to = files.channels remote_files.channels = files.pinned_to remote_files.pinned_to = files.pinned_to remote_files.groups = files.groups remote_files.source_team = files.source_team remote_files.user_team = files.source_team remote_files.source_team = files.user_team remote_files.user_team = files.user_team remote_files.user = files.user
messages	remote_files.channels = messages.channel_id remote_files.pinned_to = messages.channel_id remote_files.channels = messages.pinned_to remote_files.pinned_to = messages.pinned_to remote_files.source_team = messages.bot_profile.team_id remote_files.user_team = messages.bot_profile.team_id remote_files.source_team = messages.team remote_files.user_team = messages.team remote_files.source_team = messages.source_team remote_files.user_team = messages.source_team remote_files.source_team = messages.user_team remote_files.user_team = messages.user_team remote_files.user = messages.reply_users remote_files.user = messages.reactions.users remote_files.user = messages.user
threads	remote_files.channels = threads.channel_id remote_files.pinned_to = threads.channel_id remote_files.source_team = threads.team remote_files.user_team = threads.team remote_files.user = threads.user remote_files.user = threads.reply_users
user_groups	remote_files.groups = user_groups.id remote_files.groups = user_groups.parent_group remote_files.user = user_groups.members remote_files.user = user_groups.purpose.creator remote_files.user = user_groups.topic.creator
teams	remote_files.source_team = teams.id remote_files.user_team = teams.id
users	remote_files.source_team = users.team_id remote_files.user_team = users.team_id remote_files.user = users.id

channels

ARRAY

comments_count

INTEGER

created

DATE-TIME

date_delete

DATE-TIME

display_as_bot

BOOLEAN

editable

BOOLEAN

editor

STRING

external_id

STRING

external_type

STRING

external_url

STRING

filetype

STRING

groups

ARRAY

has_rich_preview

BOOLEAN

STRING

image_exif_rotation

INTEGER

ims

ARRAY

is_external

BOOLEAN

is_public

BOOLEAN

is_starred

BOOLEAN

is_tombstoned

BOOLEAN

last_editor

STRING

mimetype

STRING

mode

STRING

name

STRING

non_owner_editable

BOOLEAN

num_stars

INTEGER

original_h

INTEGER

original_w

INTEGER

permalink

STRING

permalink_public

STRING

pinned_info

OBJECT

pinned_to

ARRAY

pretty_type

STRING

preview

STRING

public_url_shared

BOOLEAN

size

INTEGER

source_team

STRING

state

STRING

thumb_1024

STRING

thumb_1024_h

INTEGER

thumb_1024_w

INTEGER

thumb_160

STRING

thumb_360

STRING

thumb_360_h

INTEGER

thumb_360_w

INTEGER

thumb_480

STRING

thumb_480_h

INTEGER

thumb_480_w

INTEGER

thumb_64

STRING

thumb_720

STRING

thumb_720_h

INTEGER

thumb_720_w

INTEGER

thumb_80

STRING

thumb_800

STRING

thumb_800_h

INTEGER

thumb_800_w

INTEGER

thumb_960

STRING

thumb_960_h

INTEGER

thumb_960_w

INTEGER

thumb_tiny

STRING

timestamp

DATE-TIME

title

STRING

updated

DATE-TIME

url_private

STRING

url_private_download

STRING

user

STRING

user_team

STRING

username

STRING

teams

The teams table contains info about teams in your Slack workspace.

Replication Method

Full Table

Useful links

teams schema on GitHub

Slack API method

Join teams with	on
channels	teams.id = channels.pending_connected_team_ids
files	teams.id = files.source_team teams.id = files.user_team
messages	teams.id = messages.bot_profile.team_id teams.id = messages.team teams.id = messages.source_team teams.id = messages.user_team
remote_files	teams.id = remote_files.source_team teams.id = remote_files.user_team
threads	teams.id = threads.team
users	teams.id = users.team_id

archived

BOOLEAN

avatar_base_url

STRING

created

DATE-TIME

date_create

DATE-TIME

deleted

DATE-TIME

description

STRING

discoverable

STRING

domain

STRING

email_domain

STRING

enterprise_id

STRING

enterprise_name

STRING

has_compliance_export

BOOLEAN

icon

OBJECT

image_102

STRING

image_132

STRING

image_230

STRING

image_34

STRING

image_44

STRING

image_68

STRING

image_88

STRING

image_default

BOOLEAN

STRING

is_assigned

BOOLEAN

is_enterprise

INTEGER

messages_count

INTEGER

msg_edit_window_mins

INTEGER

name

STRING

over_integrations_limit

BOOLEAN

over_storage_limit

BOOLEAN

plan

STRING

threads

The threads table contains info about conversation threads in your Slack team.

Note: While this table uses Full Table, it’s not truly replicated in full during each replication job. Each time a message in a thread is updated, the entire thread and all the messages it contains will be replicated in full. This means that while only updated threads are replicated, they are replicated in full whenever they’re updated.

Replication Method

Full Table

Primary Keys

channel_id

thread_ts

Useful links

Slack documentation

threads schema on GitHub

Slack API method

Join threads with	on
channels	threads.channel_id = channels.id threads.team = channels.pending_connected_team_ids threads.user = channels.creator threads.reply_users = channels.creator threads.user = channels.members threads.reply_users = channels.members
channel_members	threads.channel_id = channel_members.channel_id threads.user = channel_members.user_id threads.reply_users = channel_members.user_id
files	threads.channel_id = files.channels threads.channel_id = files.pinned_to threads.team = files.source_team threads.team = files.user_team threads.user = files.user threads.reply_users = files.user
messages	threads.channel_id = messages.channel_id threads.channel_id = messages.pinned_to threads.team = messages.bot_profile.team_id threads.team = messages.team threads.team = messages.source_team threads.team = messages.user_team threads.user = messages.reply_users threads.reply_users = messages.reply_users threads.user = messages.reactions.users threads.reply_users = messages.reactions.users threads.user = messages.user threads.reply_users = messages.user
remote_files	threads.channel_id = remote_files.channels threads.channel_id = remote_files.pinned_to threads.team = remote_files.source_team threads.team = remote_files.user_team threads.user = remote_files.user threads.reply_users = remote_files.user
teams	threads.team = teams.id
users	threads.team = users.team_id threads.user = users.id threads.reply_users = users.id
user_groups	threads.user = user_groups.members threads.reply_users = user_groups.members threads.user = user_groups.purpose.creator threads.reply_users = user_groups.purpose.creator threads.user = user_groups.topic.creator threads.reply_users = user_groups.topic.creator

blocks

ARRAY

type

STRING

channel_id

STRING

client_msg_id

STRING

latest_reply

STRING

reply_count

INTEGER

reply_users

ARRAY

reply_users_count

NUMBER

subscribed

BOOLEAN

team

STRING

text

STRING

thread_ts

STRING

DATE-TIME

type

STRING

user

STRING

user_groups

The user_groups table contains info about user groups from your Slack team.

Replication Method

Full Table

Primary Key

Useful links

user_groups schema on GitHub

Slack API method

Join user_groups with	on
files	user_groups.id = files.groups user_groups.parent_group = files.groups user_groups.members = files.user user_groups.purpose.creator = files.user user_groups.topic.creator = files.user
remote_files	user_groups.id = remote_files.groups user_groups.parent_group = remote_files.groups user_groups.members = remote_files.user user_groups.purpose.creator = remote_files.user user_groups.topic.creator = remote_files.user
channel_members	user_groups.members = channel_members.user_id user_groups.purpose.creator = channel_members.user_id user_groups.topic.creator = channel_members.user_id
channels	user_groups.members = channels.creator user_groups.purpose.creator = channels.creator user_groups.topic.creator = channels.creator user_groups.members = channels.members user_groups.purpose.creator = channels.members user_groups.topic.creator = channels.members
messages	user_groups.members = messages.reply_users user_groups.purpose.creator = messages.reply_users user_groups.topic.creator = messages.reply_users user_groups.members = messages.reactions.users user_groups.purpose.creator = messages.reactions.users user_groups.topic.creator = messages.reactions.users user_groups.members = messages.user user_groups.purpose.creator = messages.user user_groups.topic.creator = messages.user
threads	user_groups.members = threads.user user_groups.purpose.creator = threads.user user_groups.topic.creator = threads.user user_groups.members = threads.reply_users user_groups.purpose.creator = threads.reply_users user_groups.topic.creator = threads.reply_users
users	user_groups.members = users.id user_groups.purpose.creator = users.id user_groups.topic.creator = users.id

created

DATE-TIME

creator

STRING

is_archived

BOOLEAN

is_deleted

BOOLEAN

is_group

BOOLEAN

is_moved

INTEGER

is_mpim

BOOLEAN

is_open

BOOLEAN

is_pending_ext_shared

BOOLEAN

is_read_only

BOOLEAN

is_thread_only

BOOLEAN

last_read

DATE-TIME

members

ARRAY

name

STRING

name_normalized

STRING

num_members

INTEGER

parent_group

STRING

priority

NUMBER

purpose

OBJECT

creator

STRING

last_set

INTEGER

value

STRING

topic

OBJECT

creator

STRING

last_set

INTEGER

value

STRING

unread_count

INTEGER

unread_count_display

INTEGER

users

The users table lists contains info about the users in your Slack team. This includes deactivated and deleted users.

Replication Method	Key-based Incremental
Primary Key	id
Replication Key	updated
Useful links	users schema on GitHub Slack API method

Join users with	on
channels	users.team_id = channels.pending_connected_team_ids users.id = channels.creator users.id = channels.members
files	users.team_id = files.source_team users.team_id = files.user_team users.id = files.user
messages	users.team_id = messages.bot_profile.team_id users.team_id = messages.team users.team_id = messages.source_team users.team_id = messages.user_team users.id = messages.reply_users users.id = messages.reactions.users users.id = messages.user
remote_files	users.team_id = remote_files.source_team users.team_id = remote_files.user_team users.id = remote_files.user
teams	users.team_id = teams.id
threads	users.team_id = threads.team users.id = threads.user users.id = threads.reply_users
channel_members	users.id = channel_members.user_id
user_groups	users.id = user_groups.members users.id = user_groups.purpose.creator users.id = user_groups.topic.creator

color

STRING

deleted

BOOLEAN

has_2fa

BOOLEAN

STRING

is_admin

BOOLEAN

is_app_user

BOOLEAN

is_bot

BOOLEAN

is_owner

BOOLEAN

is_primary_owner

BOOLEAN

is_restricted

BOOLEAN

is_ultra_restricted

BOOLEAN

name

STRING

profile

OBJECT

email

STRING

real_name

STRING

team_id

STRING

tz_label

STRING

tz_offset

INTEGER

updated

DATE-TIME

Did this page help you?

If you find any issues with this page or its content – a typo, a missing step, or a technical error – please let us know!

Leave your feedback here
