Sheet view
App developers add visualizations and other elements to sheets in an app. App consumers interact with the sheet for data analysis. App developers and app consumers can interact with Insight Advisor to generate visualizations using natural language queries.
Click Sheet under the Analyze tab in the navigation bar to open a sheet.
Develop sheets in edit mode. Interact with sheets in analyze mode. Explore your data with Insight Advisor in Insight Advisor.
Edit
Click Edit to edit a sheet.

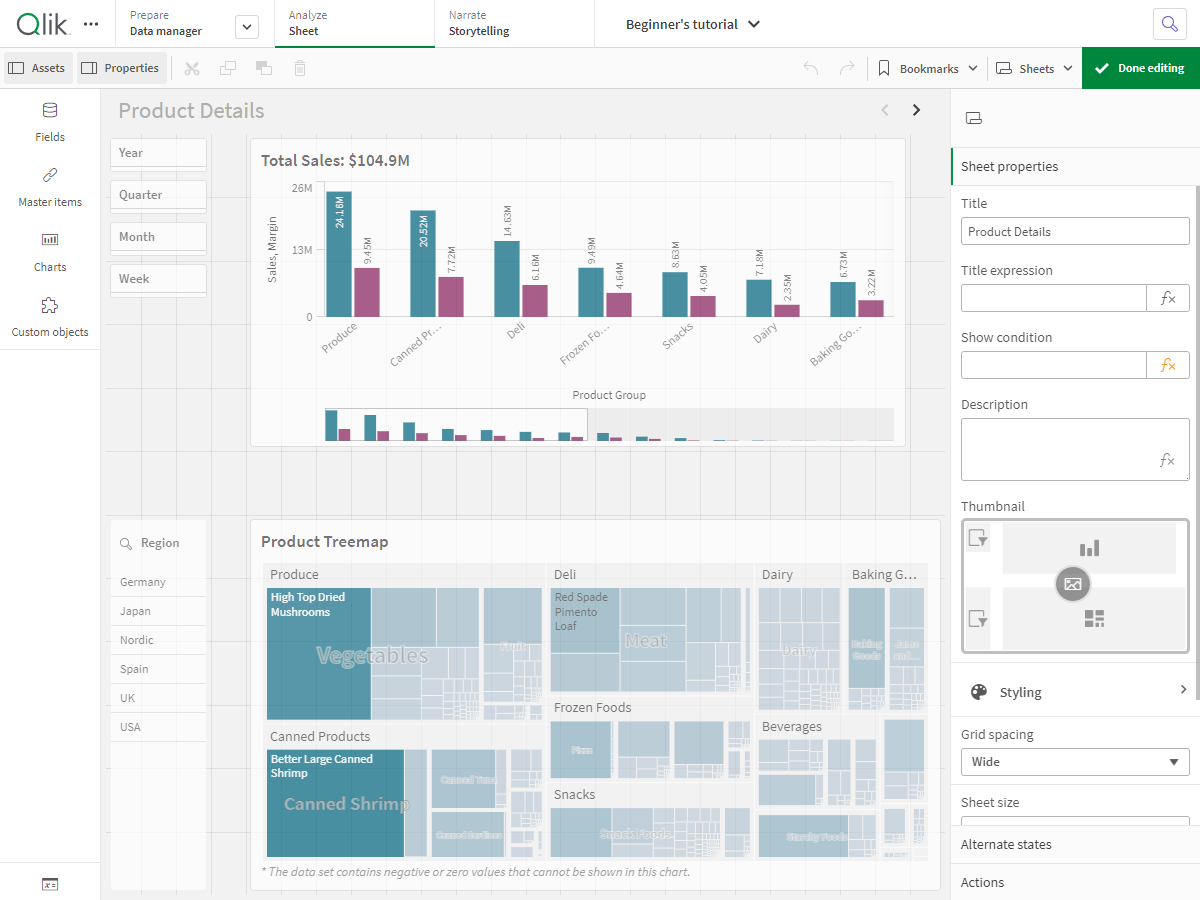

Sheet view in edit mode

You can do the following:
-
Click Sheets to add a new sheet, or to navigate to a sheet.
-
Click Assets to open the assets panel. Add assets to your sheet. For example, you can add a visualization to a sheet. See: Assets panel
For assisted creation of visualizations, click Use assisted explore to use Insight Advisor. See: Creating visualizations with Insight Advisor
-
Click Properties to open the properties panel. Configure the properties for a sheet or visualization. For example, you can add dimensions and measures to a visualization. See: Properties panel
Analyze
Interact with visualizations and data in a sheet.
Sheet view in analyze mode

You can do the following:
-
Click Sheets to navigate to a sheet.
-
Make selections in a visualization to explore insights based on selections. See: Exploring with selections
-
Create bookmarks based on selections. See: Bookmarking selections
-
Search your data. See: Using smart search
User interface item | Action |
---|---|
|
Step back in selections. |
|
Step forward in selections. |
|
Clear all selections. |
|
Open smart search to search in the entire data set. For more information, see: Using smart search |
|
Open the selections tool, which is an extension of the selections bar. |
Options menu
You can use the options menu to perform actions related to the visualization.
Options menu next to a chart

You can open the options menu by:
- Right-clicking on a chart.
- Clicking the hover menu
.
Menu options will be different depending on:
- Whether you are editing or analyzing (viewing) charts in an app.
- The chart type.
- The privileges that have been assigned to you by your administrator.

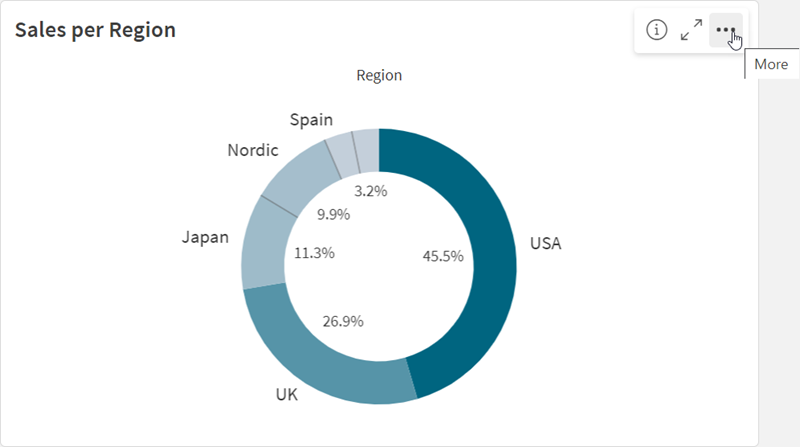

Options menu for a chart with hover menu expanded

The menu looks different if you have touch screen mode enabled on a supported device. You can toggle touch support on and off by clicking or tapping the navigation button () and using the toggle for
.
Options
Some of the available actions you might see in the options menu include:
Option | Sheet modes | Available actions |
---|---|---|
|
Edit, analyze | Expand visualization to full-screen mode. |
|
Edit, analyze | Access the developer options for the visualization. To access this feature, add /options/developer to the URL. |
|
Analyze |
Show details: See the fields and master items that make up the visualization. You can view their dependencies to see the fields that comprise them and their sources. Details can be turned on and off for visualizations in the visualization properties panel under Appearance > General > Show details. |
|
Analyze | Change certain visualization properties, without making selections or editing the sheet. See: Visual exploration |
|
Analyze | View the data for a visualization in a table. |
|
Analyze | Share the visualization in different ways, for example as an image, a link, or an embedded object. |
|
Analyze | Manage the storytelling snapshots available for the chart. For example, you can Take snapshot or access the Snapshot library. See: Collecting insights for stories using snapshots |
|
Analyze | Download the visualization in different formats, such as an image, PDF, or data file. |
|
Edit | Add the visualization as a master visualization so it can be reused by you and other app developers. You can also unlink the chart from an existing master visualization. See: Reusing visualizations with a master visualization |
|
Edit | Standard actions allowing copying and pasting of visualizations across sheets. |
|
Edit | Delete the visualization from the sheet. |
|
Edit | Copy the custom styling for a visualization and paste it onto another visualization. See: Copying and pasting visualization styling |
Insight Advisor
Click Insight Advisor to access Insight Advisor Search and Insight Advisor Analysis Types. You can ask a question in the Insights search field to generate visualizations with Insight Advisor Search.

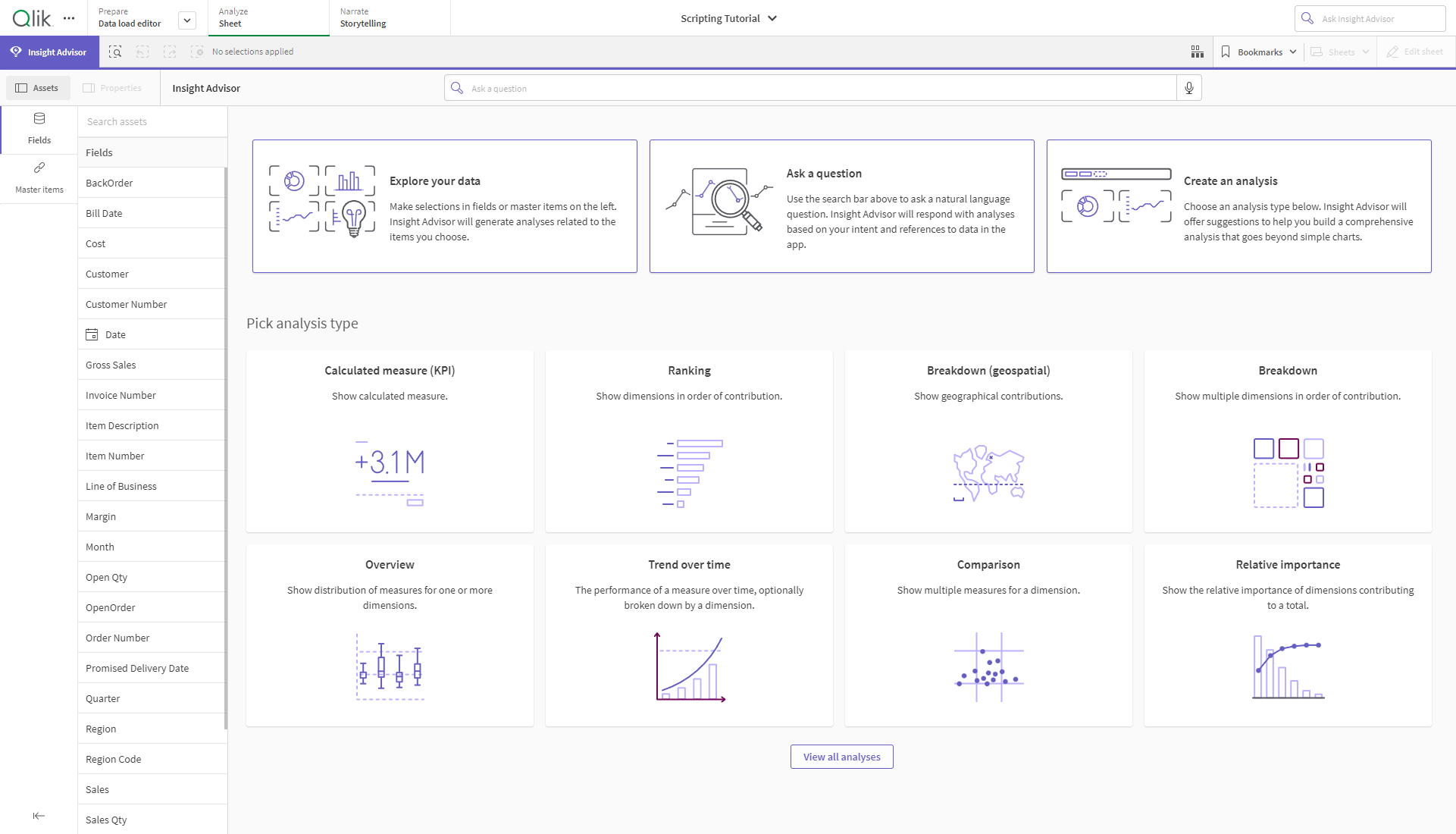

Insight Advisor

For more information, see Creating visualizations with Insight Advisor.
Touch gestures in sheet view
Touch gesture | Action |
---|---|
Long-touch and release | Open the shortcut menu |
Long-touch a visualization | Open the options menu |
Swipe | Scroll lists and visualizations |
Pinch | Zoom in or out on visualizations |
Two-finger tap | Select an interval in a list, table or bar chart axis |
Two-finger swipe | Pan a scatter plot visualization |
Three-finger tap | Reset the zoom level of a scatter plot visualization |
