Viewing code and executing the Route
Procedure
-
Click the Code tab at the
bottom of the design workspace to have a look at the generated code.
As shown in the code, a message Route is built from "cFile_cFile_1_consumer" to "cFile_cFile_2_producer". -
Click the Run view to display it
and click the Run button to launch the execution
of your Route. You can also press F6 to execute
it.
RESULT:

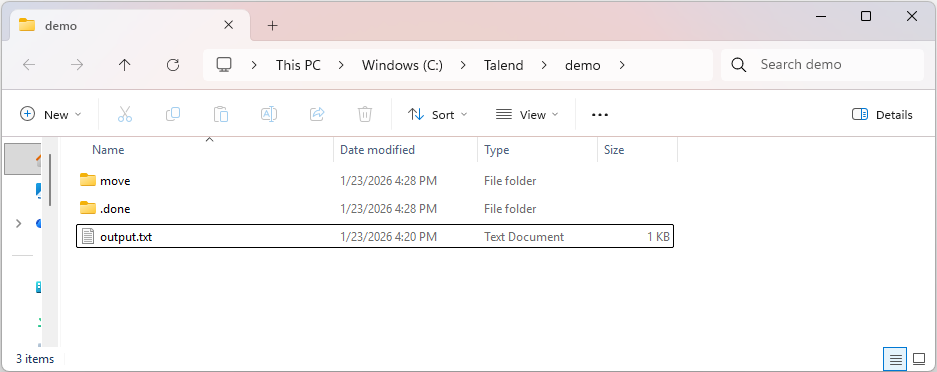

A new output.txt file is written in the C:/Talend/demo directory with the content of the input.txt file.

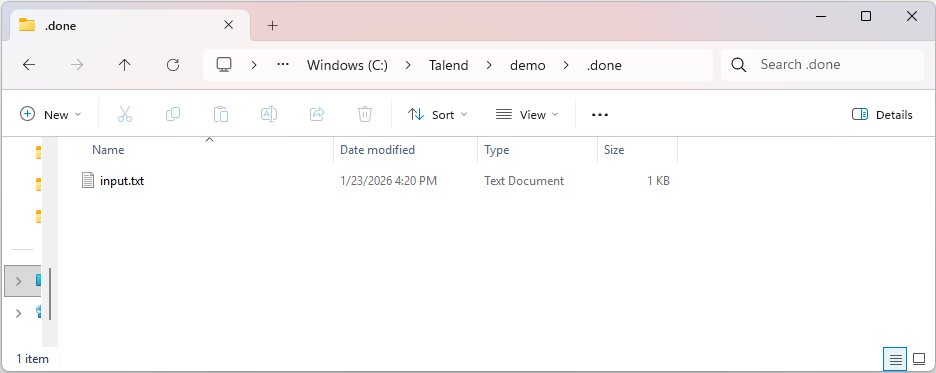

The input.txt file is consumed and moved to the .done sub-directory.
The original output.txt file is moved to the move sub-directory.
