Configuring the components

Procedure

Double-click the cAzureConnection component to display its Basic settings view in the Component tab.
From the Connection Type list, select Connection string.
In the Namespace Name field, enter the name of the Azure Service Bus namespace.

In the Shared Access Key Name field, enter the name of your Shared Access Key.

In the Shared Access Key field, enter the value for your Shared Access Key.

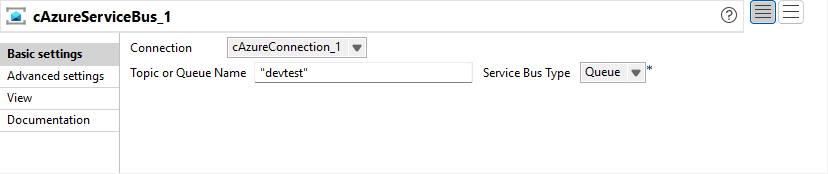

Double-click the first cAzureServiceBus component to open its Basic settings view in the Component tab.
In the Connection list, select the cAzureConnection component that you have just configured to handle messages.
In the Service Bus Type list, select Queue.

In the Topic or Queue Name field, enter the name of the Queue that messages are send to in the producer Route.

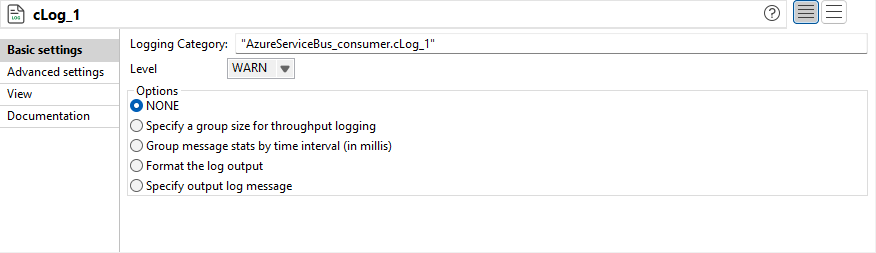

Keep the default settings of the cLog component to log the message exchanges.
Press Ctrl+S to save your Route.
