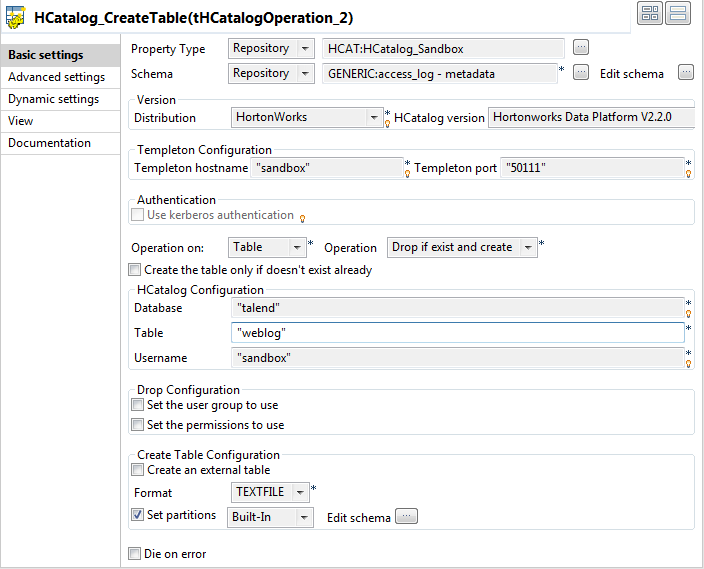

Double-click the second tHCatalogOperation component, labelled HCatalog_CreateTable in this example, to
open its Basic settings view on the
Component tab.
Define the same HCatalog connection details using the same procedure
as for the first tHCatalogOperation
component.
Click the Schema list box and select
Repository, then click the
[...] button next to the field that
appears to open the Repository
Content dialog box, expand Metadata > Generic
schemas > access_log and
select schema. Click OK to confirm your
choice and close the dialog box. The generic schema of access_log is automatically applied to the
component.
Alternatively, you can directly select the generic schema of access_log from the Repository tree view and then drag and drop it onto this
component to apply the schema.
From the Operation on list, select
Table; from the Operation list, select Drop if exist and create.
In the Table field, enter a name for
the table to be created, weblog in
this example.
Select the Set partitions check box
and click the [...] button next to
Edit schema to set a partition and
partition schema.
The partition schema must not contain any column name defined in the table
schema. In this example, the partition schema column is named
ipaddresses.
Upon completion of the component settings, press Ctrl+S to save your Job configurations.
