In this step, we will configure the third Job, C_HCatalog_Read, to check the content of the log uploaded to the
HCatalog.
Procedure
-

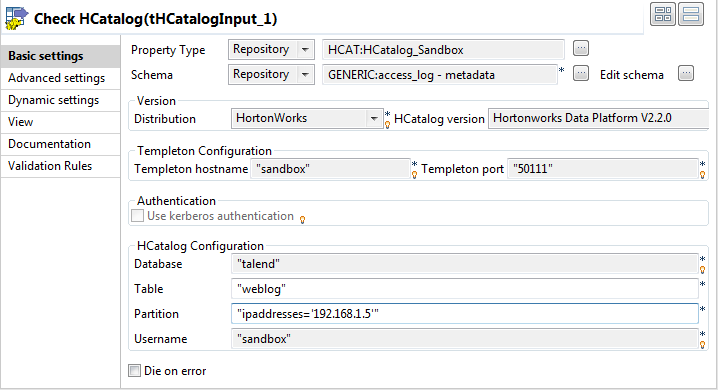

Double-click the tHCatalogInput
component to open its Basic settings
view in the Component tab.
-
Click the Property Type list box and select Repository, and then click the [...] button to open the Repository Content dialog box to use a centralized HCatalog connection.
-
Select the
HCatalog connection defined for connecting to the HCatalog database and
click OK.
All the connection details
are automatically filled in the respective fields.
-
Click the Schema list box and select
Repository, then click the
[...] button next to the field that
appears to open the Repository
Content dialog box, expand and
select schema. Click OK to confirm your
select and close the dialog box. The generic schema of access_log is automatically applied to the
component.
Alternatively, you can directly select the generic schema of access_log from the Repository tree view and then drag and drop it onto this
component to apply the schema.
-
In the Basic settings view of the
tLogRow component, select the
Vertical mode to display the each
row in a key-value manner when the Job is executed.
-
Upon completion of the component settings, press Ctrl+S to save your Job configurations.
