View Links

Most repository objects are inter-related in numerous ways, e.g.,

  • Configuration versions contain versions of models, mappings and glossaries.
  • Mappings have source and target models and glossaries
  • Etc.

In order to see these relationships, one may use the View Links options in the metadata manager UI.

Steps

  1. Go to MANAGE > Repository and the Repository Panel.

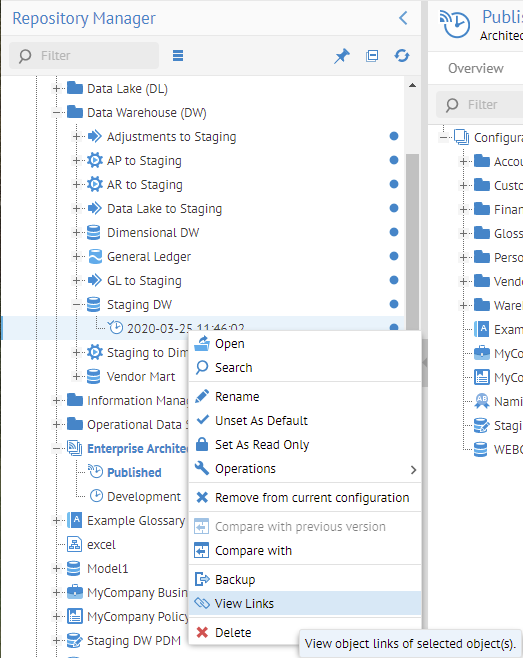

  2. Right-click on the object to check select View Links.
Information note

A version of a repository model may have different specific links than other versions of that same model and even from the model as a whole. Be sure to Show versions if necessary.

Example

Go to the metadata manager user interface and open the Repository Panel.

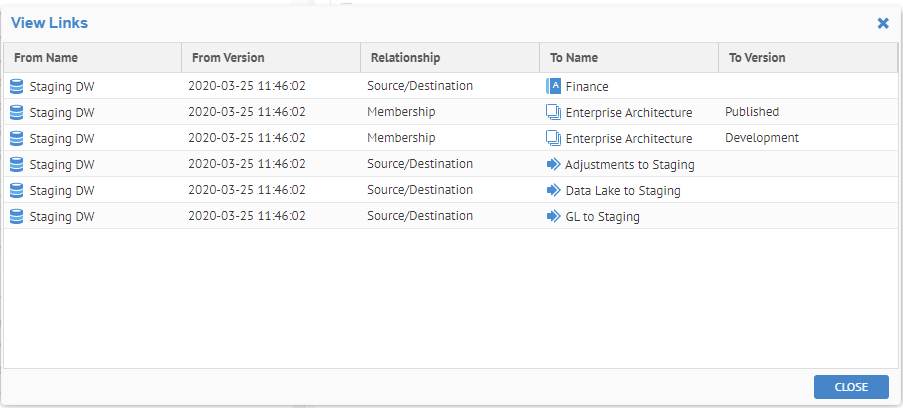

Right-click on the Staging DW model and select View Links and note that it is a member of the Published configuration version and is the target of mappings.

Wait more than one hour.

Right-click on the Data Warehouse folder and select More… > Operations > Purge unused versions. Click Run Operation.
