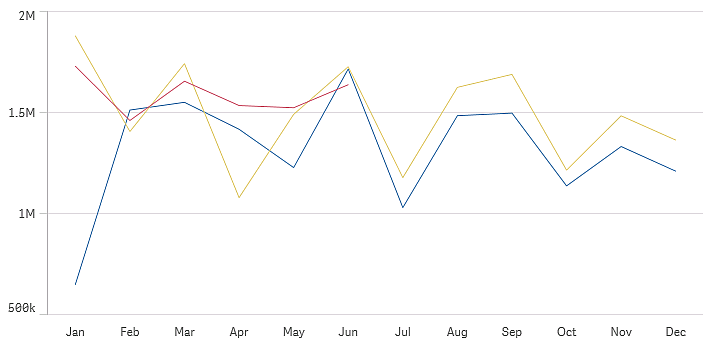

The line chart is used to show trends over time. The dimension is always on the x-axis, and the measures are always on the y-axis. The orientation cannot be changed to vertical.
Number of measures and dimensions
In a line chart you need at least one dimension and one measure. The following table shows the maximum limits. When using more than three measures the chart may be difficult to interpret.
| When using | Max limit |
|---|---|
| 1 dimension | 15 measures |
| 2 dimensions | 1 measure |
| 1 measure | 2 dimensions |
| 2 -15 measures | 1 dimension |
Scrolling and mini chart

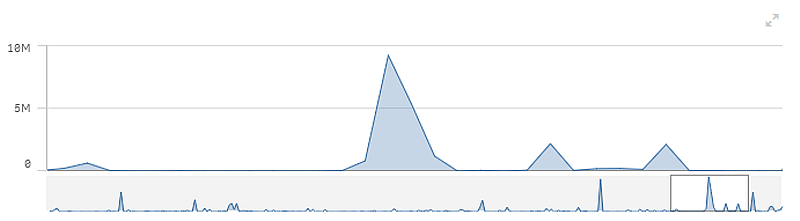

When the number of dimension values exceeds the width of the visualization, a mini chart with a scroll bar is displayed. You can scroll by using the scroll bar in the mini chart, or, depending on your device, by using the scroll wheel or by swiping with two fingers. When a large number of values are used, the mini chart no longer displays all the values. Instead, a condensed version of the mini chart (with the items in gray) displays an overview of the values, but the very low and the very high values are still visible.
Out of range
In the properties panel, under Appearance, you can set a limit for the measure axis range. Without a limit, the range is automatically set to include the highest positive and lowest negative value, but if you set a limit you may have values that exceed that limit. When a data point value cannot be displayed, due to the range limits, an arrow indicates the direction of the value.
When a reference line is out of range, an arrow is displayed together with the number of reference lines that are out of range.
