quarterstart - script and chart function
This function returns a value corresponding to a timestamp of the first millisecond of the quarter containing date. The default output format will be the DateFormat set in the script.
Syntax:
QuarterStart(date[, period_no[, first_month_of_year]])
Return data type: dual

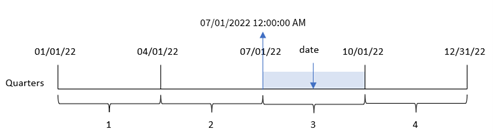

The quarterstart() function determines which quarter the date falls into. It then returns a timestamp, in date format, for the first millisecond of the first month of that quarter.
Argument | Description |
---|---|
date | The date or timestamp to evaluate. |
period_no | period_no is an integer, where the value 0 indicates the quarter which contains date. Negative values in period_no indicate preceding quarters and positive values indicate succeeding quarters. |
first_month_of_year | If you want to work with (fiscal) years not starting in January, indicate a value between 2 and 12 in first_month_of_year. |
When to use it
The quarterstart() function is commonly used as part of an expression when the user would like the calculation to use the fraction of the quarter that has elapsed thus far. For example, it could be used if a user would like to calculate the interest that has been accumulated in a quarter to date.
Example | Result |
---|---|
quarterstart('10/29/2005') | Returns 10/01/2005. |
quarterstart('10/29/2005', -1 ) | Returns 07/01/2005. |
quarterstart('10/29/2005', 0, 3) | Returns 09/01/2005. |
Regional settings
Unless otherwise specified, the examples in this topic use the following date format: MM/DD/YYYY. The date format is specified in the SET DateFormat statement in your data load script. The default date formatting may be different in your system, due to your regional settings and other factors. You can change the formats in the examples below to suit your requirements. Or you can change the formats in your load script to match these examples.
Default regional settings in apps are based on the regional system settings of the computer or server where Qlik Sense is installed. If the Qlik Sense server you are accessing is set to Sweden, the Data load editor will use Swedish regional settings for dates, time, and currency. These regional format settings are not related to the language displayed in the Qlik Sense user interface. Qlik Sense will be displayed in the same language as the browser you are using.
Example 1 – No additional arguments
Overview
Open the Data load editor and add the load script below to a new tab.
The load script contains:
-
A dataset containing a set of transactions for 2022, which is loaded into a table called Transactions.
-
The date field provided in the DateFormat system variable (MM/DD/YYYY) format.
-
The creation of a field, start_of_quarter, which returns a timestamp for the start of the quarter when the transactions took place.
Load script
SET DateFormat='MM/DD/YYYY';
Transactions:
Load
*,
quarterstart(date) as start_of_quarter,
timestamp(quarterstart(date)) as start_of_quarter_timestamp
;
Load
*
Inline
[
id,date,amount
8188,1/7/2022,17.17
8189,1/19/2022,37.23
8190,2/28/2022,88.27
8191,2/5/2022,57.42
8192,3/16/2022,53.80
8193,4/1/2022,82.06
8194,5/7/2022,40.39
8195,5/16/2022,87.21
8196,6/15/2022,95.93
8197,6/26/2022,45.89
8198,7/9/2022,36.23
8199,7/22/2022,25.66
8200,7/23/2022,82.77
8201,7/27/2022,69.98
8202,8/2/2022,76.11
8203,8/8/2022,25.12
8204,8/19/2022,46.23
8205,9/26/2022,84.21
8206,10/14/2022,96.24
8207,10/29/2022,67.67
];
Results
Load the data and open a sheet. Create a new table and add these fields as dimensions:
-
date
-
start_of_quarter
-
start_of_quarter_timestamp
date | start_of_quarter | start_of_quarter_timestamp |
---|---|---|
1/7/2022 | 01/01/2022 | 1/1/2022 12:00:00 AM |
1/19/2022 | 01/01/2022 | 1/1/2022 12:00:00 AM |
2/5/2022 | 01/01/2022 | 1/1/2022 12:00:00 AM |
2/28/2022 | 01/01/2022 | 1/1/2022 12:00:00 AM |
3/16/2022 | 01/01/2022 | 1/1/2022 12:00:00 AM |
4/1/2022 | 04/01/2022 | 4/1/2021 12:00:00 AM |
5/7/2022 | 04/01/2022 | 4/1/2021 12:00:00 AM |
5/16/2022 | 04/01/2022 | 4/1/2021 12:00:00 AM |
6/15/2022 | 04/01/2022 | 4/1/2021 12:00:00 AM |
6/26/2022 | 04/01/2022 | 4/1/2021 12:00:00 AM |
7/9/2022 | 07/01/2022 | 7/1/2021 12:00:00 AM |
7/22/2022 | 07/01/2022 | 7/1/2021 12:00:00 AM |
7/23/2022 | 07/01/2022 | 7/1/2021 12:00:00 AM |
7/27/2022 | 07/01/2022 | 7/1/2021 12:00:00 AM |
8/2/2022 | 07/01/2022 | 7/1/2021 12:00:00 AM |
8/8/2022 | 07/01/2022 | 7/1/2021 12:00:00 AM |
8/19/2022 | 07/01/2022 | 7/1/2021 12:00:00 AM |
9/26/2022 | 07/01/2022 | 7/1/2021 12:00:00 AM |
10/14/2022 | 10/01/2022 | 10/1/2022 12:00:00 AM |
10/29/2022 | 10/01/2022 | 10/1/2022 12:00:00 AM |
The start_of_quarter field is created in the preceding load statement by using the quarterstart() function and passing the date field as the function’s argument. The quarterstart() function initially identifies which quarter the date value falls into. It then returns a timestamp for the first millisecond of that quarter.

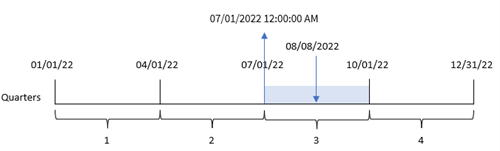

Transaction 8203 took place on August 8. The quarterstart() function identifies that the transaction took place in the third quarter, and returns the first millisecond of that quarter, which is July 1 at 12:00:00 AM.
Example 2 – period_no
Overview
Open the Data load editor and add the load script below to a new tab.
The load script contains:
-
The same dataset and scenario as the first example.
-
The creation of a field, previous_quarter_start, that returns the timestamp for the start of the quarter before the transaction took place.
Load script
SET DateFormat='MM/DD/YYYY';
Transactions:
Load
*,
quarterstart(date,-1) as previous_quarter_start,
timestamp(quarterstart(date,-1)) as previous_quarter_start_timestamp
;
Load
*
Inline
[
id,date,amount
8188,1/7/2022,17.17
8189,1/19/2022,37.23
8190,2/28/2022,88.27
8191,2/5/2022,57.42
8192,3/16/2022,53.80
8193,4/1/2022,82.06
8194,5/7/2022,40.39
8195,5/16/2022,87.21
8196,6/15/2022,95.93
8197,6/26/2022,45.89
8198,7/9/2022,36.23
8199,7/22/2022,25.66
8200,7/23/2022,82.77
8201,7/27/2022,69.98
8202,8/2/2022,76.11
8203,8/8/2022,25.12
8204,8/19/2022,46.23
8205,9/26/2022,84.21
8206,10/14/2022,96.24
8207,10/29/2022,67.67
];
Results
Load the data and open a sheet. Create a new table and add these fields as dimensions:
-
date
-
previous_quarter_start
-
previous_quarter_start_timestamp
date | previous_quarter_start | previous_quarter_start_timestamp |
---|---|---|
1/7/2022 | 10/01/2021 | 10/1/2021 12:00:00 AM |
1/19/2022 | 10/01/2021 | 10/1/2021 12:00:00 AM |
2/5/2022 | 10/01/2021 | 10/1/2021 12:00:00 AM |
2/28/2022 | 10/01/2021 | 10/1/2021 12:00:00 AM |
3/16/2022 | 10/01/2021 | 10/1/2021 12:00:00 AM |
4/1/2022 | 01/01/2022 | 1/1/2022 12:00:00 AM |
5/7/2022 | 01/01/2022 | 1/1/2022 12:00:00 AM |
5/16/2022 | 01/01/2022 | 1/1/2022 12:00:00 AM |
6/15/2022 | 01/01/2022 | 1/1/2022 12:00:00 AM |
6/26/2022 | 01/01/2022 | 1/1/2022 12:00:00 AM |
7/9/2022 | 04/01/2022 | 4/1/2021 12:00:00 AM |
7/22/2022 | 04/01/2022 | 4/1/2021 12:00:00 AM |
7/23/2022 | 04/01/2022 | 4/1/2021 12:00:00 AM |
7/27/2022 | 04/01/2022 | 4/1/2021 12:00:00 AM |
8/2/2022 | 04/01/2022 | 4/1/2021 12:00:00 AM |
8/8/2022 | 04/01/2022 | 4/1/2021 12:00:00 AM |
8/19/2022 | 04/01/2022 | 4/1/2021 12:00:00 AM |
9/26/2022 | 04/01/2022 | 4/1/2021 12:00:00 AM |
10/14/2022 | 07/01/2022 | 7/1/2022 12:00:00 AM |
10/29/2022 | 07/01/2022 | 7/1/2022 12:00:00 AM |
In this instance, because a period_no of -1 was used as the offset argument in the quarterstart() function, the function first identifies the quarter that the transactions take place in. It then shifts one quarter prior and identifies the first millisecond of that quarter.

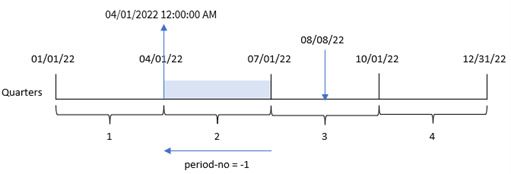

Transaction 8203 took place on August 8. The quarterstart() function identifies that the quarter before the transaction took place was between April 1 and June 30. It then returns the first millisecond of that quarter, April 1 at 12:00:00 AM.
Example 3 – first_month_of_year
Overview
Open the Data load editor and add the load script below to a new tab.
The load script contains the same dataset and scenario as the first example. However, in this example, we need to set March 1 as the beginning of the financial year.
Load script
SET DateFormat='MM/DD/YYYY';
Transactions:
Load
*,
quarterstart(date,0,3) as start_of_quarter,
timestamp(quarterstart(date,0,3)) as start_of_quarter_timestamp
;
Load
*
Inline
[
id,date,amount
8188,1/7/2022,17.17
8189,1/19/2022,37.23
8190,2/28/2022,88.27
8191,2/5/2022,57.42
8192,3/16/2022,53.80
8193,4/1/2022,82.06
8194,5/7/2022,40.39
8195,5/16/2022,87.21
8196,6/15/2022,95.93
8197,6/26/2022,45.89
8198,7/9/2022,36.23
8199,7/22/2022,25.66
8200,7/23/2022,82.77
8201,7/27/2022,69.98
8202,8/2/2022,76.11
8203,8/8/2022,25.12
8204,8/19/2022,46.23
8205,9/26/2022,84.21
8206,10/14/2022,96.24
8207,10/29/2022,67.67
];
Results
Load the data and open a sheet. Create a new table and add these fields as dimensions:
-
date
-
start_of_quarter
-
start_of_quarter_timestamp
date | start_of_quarter | start_of_quarter_timestamp |
---|---|---|
1/7/2022 | 12/01/2021 | 12/1/2021 12:00:00 AM |
1/19/2022 | 12/01/2021 | 12/1/2021 12:00:00 AM |
2/5/2022 | 12/01/2021 | 12/1/2021 12:00:00 AM |
2/28/2022 | 12/01/2021 | 12/1/2021 12:00:00 AM |
3/16/2022 | 03/01/2022 | 3/1/2022 12:00:00 AM |
4/1/2022 | 03/01/2022 | 3/1/2022 12:00:00 AM |
5/7/2022 | 03/01/2022 | 3/1/2022 12:00:00 AM |
5/16/2022 | 03/01/2022 | 3/1/2022 12:00:00 AM |
6/15/2022 | 06/01/2022 | 6/1/2022 12:00:00 AM |
6/26/2022 | 06/01/2022 | 6/1/2022 12:00:00 AM |
7/9/2022 | 06/01/2022 | 6/1/2022 12:00:00 AM |
7/22/2022 | 06/01/2022 | 6/1/2022 12:00:00 AM |
7/23/2022 | 06/01/2022 | 6/1/2022 12:00:00 AM |
7/27/2022 | 06/01/2022 | 6/1/2022 12:00:00 AM |
8/2/2022 | 06/01/2022 | 6/1/2022 12:00:00 AM |
8/8/2022 | 06/01/2022 | 6/1/2022 12:00:00 AM |
8/19/2022 | 06/01/2022 | 6/1/2022 12:00:00 AM |
9/26/2022 | 09/01/2022 | 9/1/2022 12:00:00 AM |
10/14/2022 | 09/01/2022 | 9/1/2022 12:00:00 AM |
10/29/2022 | 09/01/2022 | 9/1/2022 12:00:00 AM |
In this instance, because the first_month_of_year argument of 3 is used in the quarterstart() function, the start of the year moves from January 1 to March 1.
Transaction 8203 took place on August 8. Because the beginning of the year is March 1, the quarters in the year occur between March-May, June-August, September-November and December-February. The quarterstart() function identifies that the transaction took place in the quarter between the start of June and of August and returns the first millisecond of that quarter, which is June 1 at 12:00:00 AM.
Example 4 – Chart object example
Overview
Open the Data load editor and add the load script below to a new tab.
The load script contains the same dataset and scenario as the first example.
However, in this example, the unchanged dataset is loaded into the application. The calculation that returns a timestamp for the end of the quarter when the transactions took place is created as a measure in a chart object of the application.
Load script
Transactions:
Load
*
Inline
[
id,date,amount
8188,1/7/2022,17.17
8189,1/19/2022,37.23
8190,2/28/2022,88.27
8191,2/5/2022,57.42
8192,3/16/2022,53.80
8193,4/1/2022,82.06
8194,5/7/2022,40.39
8195,5/16/2022,87.21
8196,6/15/2022,95.93
8197,6/26/2022,45.89
8198,7/9/2022,36.23
8199,7/22/2022,25.66
8200,7/23/2022,82.77
8201,7/27/2022,69.98
8202,8/2/2022,76.11
8203,8/8/2022,25.12
8204,8/19/2022,46.23
8205,9/26/2022,84.21
8206,10/14/2022,96.24
8207,10/29/2022,67.67
];
Results
Load the data and open a sheet. Create a new table and add this field as a dimension: date.
Add the following measures:
-
=quarterstart(date)
-
=timestamp(quarterstart(date))
date | =quarterstart(date) | =timestamp(quarterstart(date)) |
---|---|---|
10/14/2022 | 10/01/2022 | 10/1/2022 12:00:00 AM |
10/29/2022 | 10/01/2022 | 10/1/2022 12:00:00 AM |
7/9/2022 | 07/01/2022 | 7/1/2022 12:00:00 AM |
7/22/2022 | 07/01/2022 | 7/1/2022 12:00:00 AM |
7/23/2022 | 07/01/2022 | 7/1/2022 12:00:00 AM |
7/27/2022 | 07/01/2022 | 7/1/2022 12:00:00 AM |
8/2/2022 | 07/01/2022 | 7/1/2022 12:00:00 AM |
8/8/2022 | 07/01/2022 | 7/1/2022 12:00:00 AM |
8/19/2022 | 07/01/2022 | 7/1/2022 12:00:00 AM |
9/26/2022 | 07/01/2022 | 7/1/2022 12:00:00 AM |
4/1/2022 | 04/01/2022 | 4/1/2022 12:00:00 AM |
5/7/2022 | 04/01/2022 | 4/1/2022 12:00:00 AM |
5/16/2022 | 04/01/2022 | 4/1/2022 12:00:00 AM |
6/15/2022 | 04/01/2022 | 4/1/2022 12:00:00 AM |
6/26/2022 | 04/01/2022 | 4/1/2022 12:00:00 AM |
1/7/2022 | 01/01/2022 | 1/1/2022 12:00:00 AM |
1/19/2022 | 01/01/2022 | 1/1/2022 12:00:00 AM |
2/5/2022 | 01/01/2022 | 1/1/2022 12:00:00 AM |
2/28/2022 | 01/01/2022 | 1/1/2022 12:00:00 AM |
3/16/2022 | 01/01/2022 | 1/1/2022 12:00:00 AM |
The start_of_quarter measure is created in the chart object by using the quarterstart() function and passing the date field as the function’s argument.
The quarterstart() function identifies the quarter into which the date value falls, returning a timestamp for the first millisecond of that quarter.

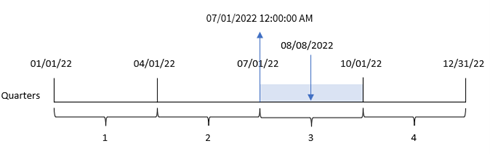

Transaction 8203 took place on August 8. The quarterstart() function identifies that the transaction took place in the third quarter, and returns the first millisecond of that quarter. This returned value is July 1 at 12:00:00 AM.
Example 5 – Scenario
Overview
Open the Data load editor and add the load script below to a new tab.
The load script contains:
-
A dataset containing a set of loan balances, which is loaded into a table called Loans.
-
Data consisting of loan IDs, the balance at the beginning of the quarter, and the simple interest rate charged on each loan per annum.
The end user would like a chart object that displays, by loan ID, the current interest that has been accrued on each loan in the quarter to date.
Load script
Loans:
Load
*
Inline
[
loan_id,start_balance,rate
8188,$10000.00,0.024
8189,$15000.00,0.057
8190,$17500.00,0.024
8191,$21000.00,0.034
8192,$90000.00,0.084
];
Results
Do the following:
-
Load the data and open a sheet. Create a new table and add these fields as dimensions:
-
loan_id
-
start_balance
-
-
Next, create this measure to calculate the accumulated interest:
=start_balance*(rate*(today(1)-quarterstart(today(1)))/365)
-
Set the measure's Number formatting to Money.
loan_id | start_balance | =start_balance*(rate*(today(1)-quarterstart(today(1)))/365) |
---|---|---|
8188 | $10000.00 | $15.07 |
8189 | $15000.00 | $128.84 |
8190 | $17500.00 | $63.29 |
8191 | $21000.00 | $107.59 |
8192 | $90000.00 | $1139.18 |
The quarterstart() function, using today’s date as its only argument, returns the start date of the current year. By subtracting that result from the current date, the expression returns the number of days that have elapsed so far this quarter.
This value is then multiplied by the interest rate and divided by 365 to return the effective interest rate incurred for this period. The result is then multiplied by the starting balance of the loan to return the interest that has been accrued so far this quarter.
