Viewing code and executing the Route
Procedure
-

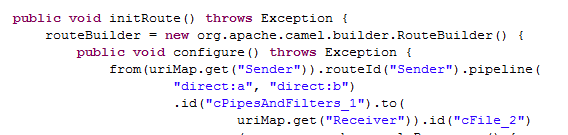

Click the Code tab at the bottom of the
design workspace to have a look at the generated code.
As shown in the code, messages sent from Sender are redirected to endpoints identified by direct:a and direct:b by cPipesAndFilters_1 before being routed to Receiver. -

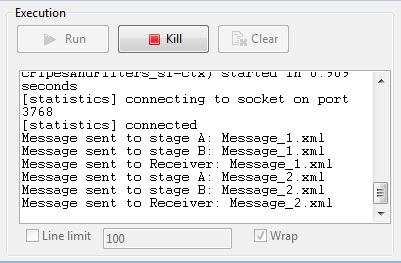

Press F6 to run your Route.
RESULT: The message delivery goes through stage A and then stage B before reaching Receiver.
