Configuring the cSOAP component

Last updated: 2/11/2026

About this task

In this scenario, the cProcessor component is used only to enable the cSOAP component to function as a service producer. Therefore, it does not need any configuration.

Procedure

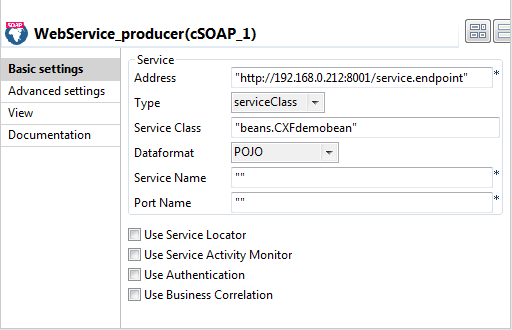

  1. Double-click the cSOAP component to display its Basic settings view in the Component tab.
  2. In the Address field, type in the service endpoint URL for the Web service to be provided, http://192.168.0.212:8001/service.endpoint in this example.
  3. From the Type from, select serviceClass to start the Web service from a Java class.
  4. In the Service Class field, specify the predefined bean class, CXFdemobean in this example.
  5. From the Dataformat list, select POJO as the serviceClass service data format.
  6. Press Ctrl+S to save your Route.
