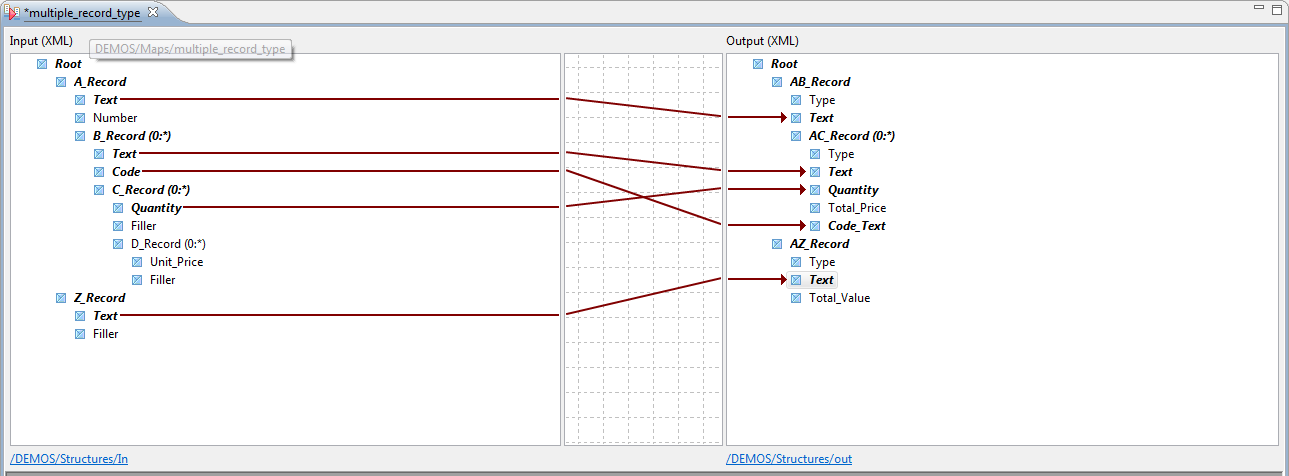

In the map that opens, place the multiple_record_input
structure from the Data Mapper view in the
Input side of the map.
Place the multiple_record_output structure in the
Output side of the map.
Under the A_Record element on the
Input side, place the input element
Text to the output element Text that
is under the AB_Record element on the
Output side.
Under the B_Record element on the
Input side, place the input element
Text to the output element Text that
is under the AC_Record element on the
Output side.
Under the B_Record element on the
Input side, place the input element
Code to the output element Code_Text
that is under the AC_Record element on the
Output side.
Under the C_Record element on the
Input side, place the input element
Quantity to the output element
Quantity that is under the AC_Record
element on the Output side, and then click
Yes when asked if you want to change the output map element
looping.
Under the Z_Record element on the
Input side, place the input element
Text to the output element Text that
is under the AZ_Record element on the
Output side.
Example
