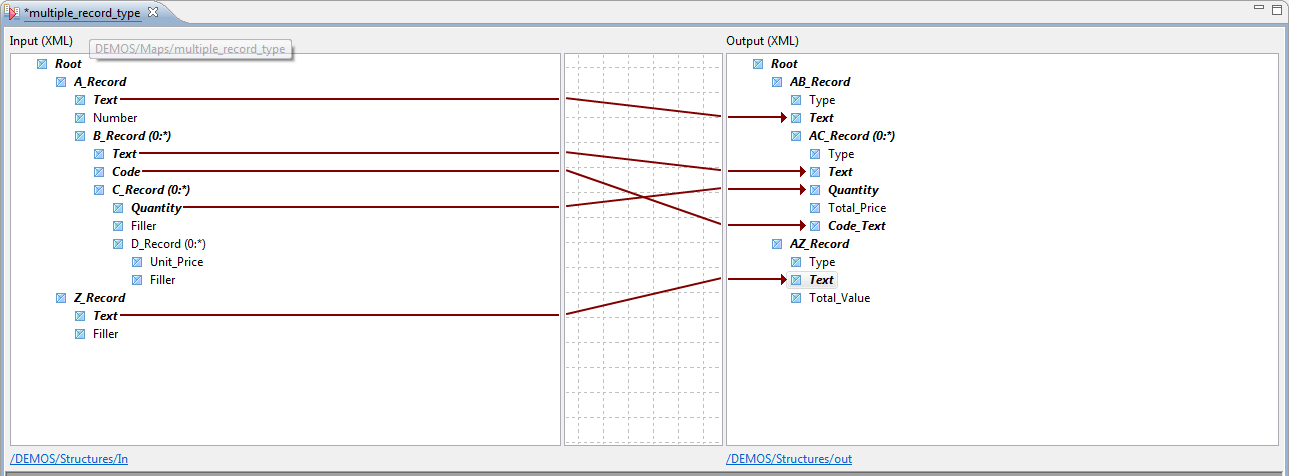

In the map that opens, drag the multiple_record_input structure from the Data
Mapper view and drop it into the Input side of the map.
Drag the multiple_record_output structure and
drop it into the Output side of the map.
Under the A_Record element on the Input side, drag and drop the input element Text to the output element Text that is under the AB_Record
element on the Output side.
Under the B_Record element on the Input side, drag and drop the input element Text to the output element Text that is under the AC_Record
element on the Output side.
Under the B_Record element on the Input side, drag and drop the input element Code to the output element Code_Text that is under the AC_Record element on the Output
side.
Under the C_Record element on the Input side, drag and drop the input element Quantity to the output element Quantity that is under the AC_Record element on the Output
side, and then click Yes when asked if you want
to change the output map element looping.
Under the Z_Record element on the Input side, drag and drop the input element Text to the output element Text that is under the AZ_Record
element on the Output side.
