Creating the output structure

Create the XML output structure using the existing input structure.

1. In the Data Mapper tab, expand the Hierarchical Mapper node and right-click Structures.
2. Click New > Structure.
3. Select Create a new structure where you manually enter elements and click Next.



4. Enter a name for your structure, readings_output for example.
5. Select the XML representation and click Finish.
   Your structure is created and opens in the editor.
6. Right-click the left section of the editor and click New Element, then enter a name for the element, root for example.
7. Right-click root and click New Element to add an element named valid.

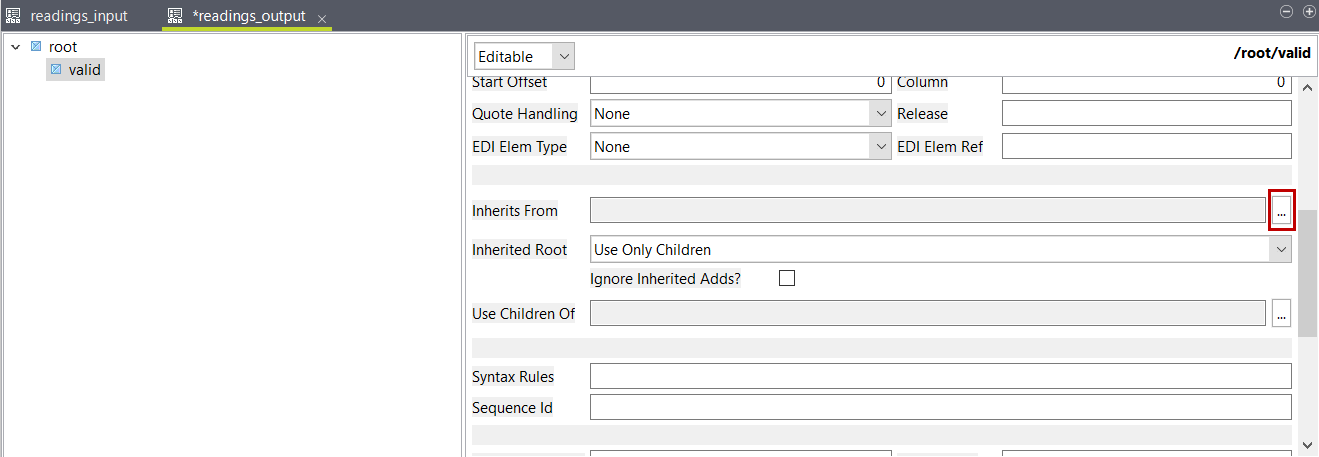

8. In the properties of the valid element, scroll down to the Inherits From property and click the […] button to the right of the field.



9. Expand you project and select Structures > readings_input.
   The elements in the input structure are added under the valid element.



10. Right-click the valid element and click Copy.
11. Right-click the root element and click Paste. Repeat this step to create a third element under root.
12. Click valid[2] and valid[3] and edit their names to invalid and cleansed, respectively.
13. Press Ctrl + S to save your structure.

Results

Your output structure is created and should look like this:
