Create a Security Group For ActiveMQ

In this section, you will create a security group for the EC2 instances hosting your ActiveMQ brokers.

1. In the EC2 console, click Security Groups.
2. Click Create Security Group.
3. Use the settings below:

   Field	Value
   Security group name	ActiveMQ Security Group
   Description	Security Group of ActiveMQ brokers
   VPC	Select Talend VPC.

4. In Security group rules, add an SSH rule:

   Field	Value
   Type	ssh
   Protocol	TCP
   Port Range	22
   Source	Custom 0.0.0.0/0

5. In Security group rules, add a TCP Rule:

   Field	Value
   Type	Custom TCP Rule
   Protocol	TCP
   Port Range	8161
   Source	Custom 0.0.0.0/0

6. In Security group rules, add a TCP Rule:

   Field	Value
   Type	Custom TCP Rule
   Protocol	TCP
   Port Range	61616
   Source	Custom 0.0.0.0/0

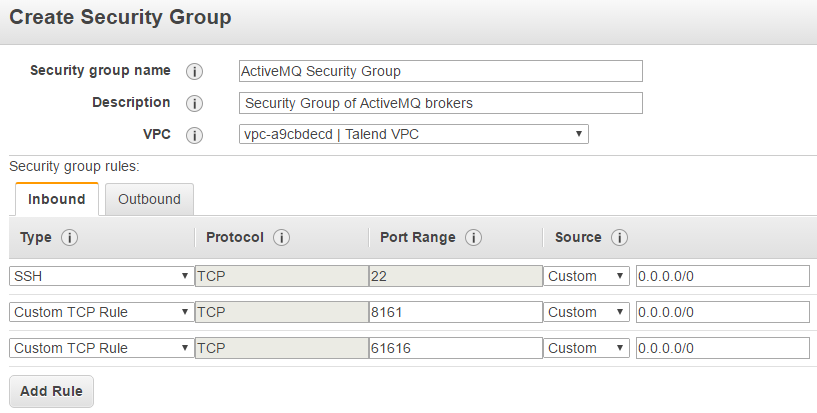

   Review your settings:



7. Click Create.
   Information noteNote: Note the group-id of the security group e.g. sg-bc2021da in this tutorial. You will need this information when creating the EFS security group.
