Creating a table analysis with a simple SQL business rule

You can create analyses on either tables or views in a database using SQL business rules. The procedure for creating such analysis is the same for a table or a view.

Before you begin

At least one SQL business rule has been created in the Profiling perspective of Talend Studio.
At least one database connection is set in the Profiling perspective of Talend Studio.

About this task

In this example, you want to add the SQL business rule created in Creating an SQL business rule to a top_custom table that contains an age column. This SQL business rule will match the customer ages to define those who are older than 18.

Defining the table analysis

Procedure

In the DQ repository tree view, expand Data Profiling and right-click Analyses > New analysis.

The Create new analysis wizard opens.
Select Table > Business rule analysis and click Create.
Enter a name.
Optional: Enter column analysis metadata (Purpose, Description and Author).
Click Next.

Selecting the table you want to analyze

Procedure

From the Connection menu, select the connection and click Next.
From the Tables menu, click Select tables and select the check box of the table to analyze.

You can filter the table list by typing the desired text in the Table filter field. The list will show only the tables that correspond to the text you type in.

Information noteNote: You can directly select the data quality rule you want to add to the current analysis by clicking the Next button in the Edit analysis wizard or you can do that at later stage in the Rules menu as shown in the following steps.
Right-click any of the listed tables and select Show in DQ repository view.
The selected table is automatically located under the corresponding connection in the tree view.
Click Next.

Selecting the business rule

Procedure

From the Rules menu, click next to the table name where you want to add the SQL business rule.
The Business Rule Selector dialog box is displayed.
Expand the Rules folder and select the check boxes of the predefined SQL business rules you want to use on the corresponding tables.
Click OK.
The selected business rule is listed below the table name in the Analyzed Tables view.

You can also drag the business rule directly from the DQ repository tree view to the table in the analysis editor.
Save the analysis and press F6 to execute it.

An information pop-up opens to confirm that the operation is in progress and the analysis editor switches to the analysis results.

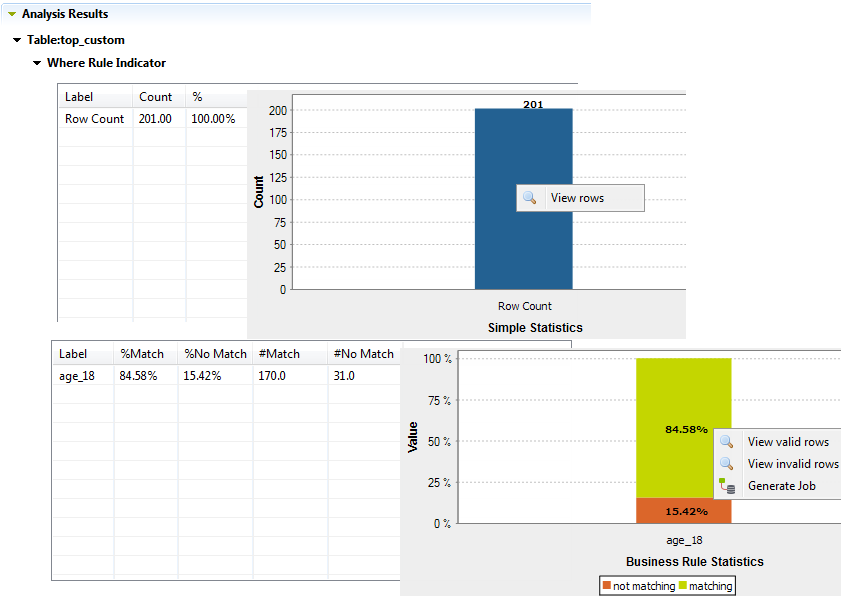

All age records in the selected table are evaluated against the defined SQL business rule. The analysis results has two bar charts: the first is a row count indicator that shows the number of rows in the analyzed table, and the second is a match and non-match indicator that indicates in red the age records from the "analyzed result set" that do not match the criteria (age below 18).
Right-click the business rule results in the second table, or right-click the result bar in the chart itself.

Select an option:

Option	Description
View valid rows	Access a list in the SQL editor of all valid rows measured against the pattern used on the selected table.
View invalid rows	Access a list in the SQL editor of all invalid rows measured against the pattern used on the selected table.
Generate Job	Generate a Job that uses the Extract Load Transform process to write the valid or invalid rows of the analyzed table in an output file. This option is available for Microsoft SQL Server, MySQL, Oracle, and PostgreSQL connections.

You can carry out a table analysis in a direct and more simplified way. For further information, see Creating a table analysis with an SQL business rule in a shortcut procedure.

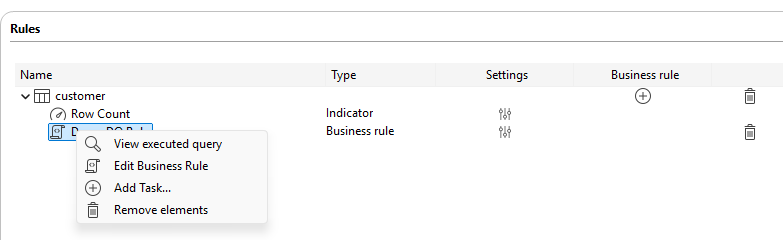

If required, right-click the business rule and select View executed query.
The SQL editor opens in Talend Studio to display the query.
