Creating the output structure for your Route

Create an output JSON structure that inherits elements from the input structure you created.

1. Expand the Hierarchical Mapper node and right-click Structure, then click New > Structure.
2. In the wizard that opens, select Create a new structure where you manually enter elements and click Next.
3. Select a folder and enter a name for your structure, then click Next.
4. Select the JSON representation and click Finish.
5. Right-click the section on the left of your workspace and click New Element to create a root element.
6. Right-click the root to create a new element named Account.
7. In the element properties, scroll down to the Inherits From field and click the ... button.
8. Select your input structure and click OK.

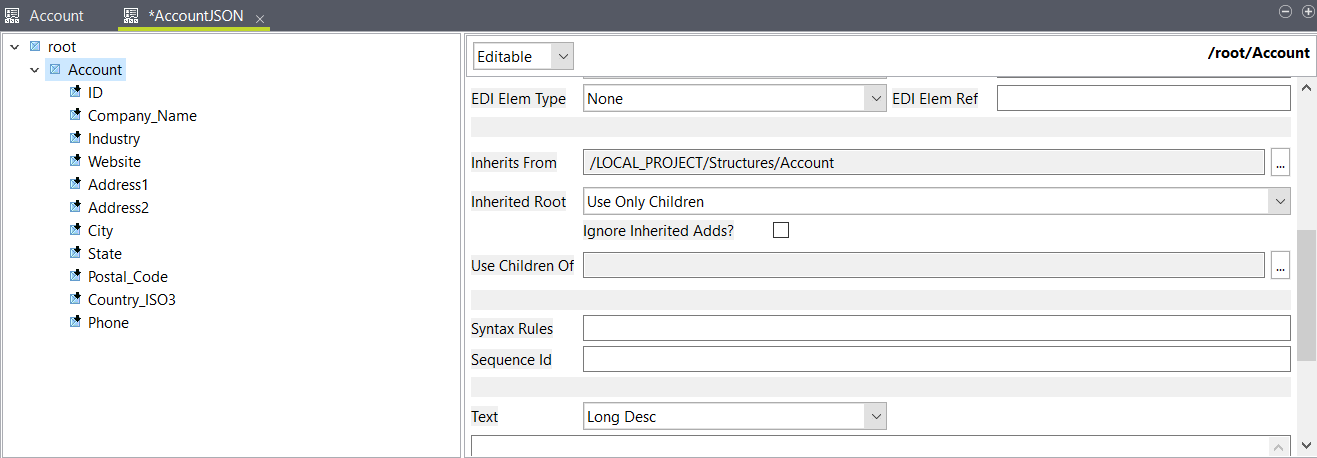

   The elements in the input structure are added under the Account element.



9. Press Ctrl+S to save your structure.
