Mapping elements names and their values

Create a map to extract XML element names and values.

1. Create a JSON file with the following content and save it on your machine:

   {
      "elements":[
         {
            "key":"",
            "value":[
               {
                  "key":"",
                  "value":""
               }
            ]
         }
      ]
   }

2. In Talend Data Mapper, create a structure based on your JSON file to use as output in your map.
   For more information, see Creating a structure from a sample document.

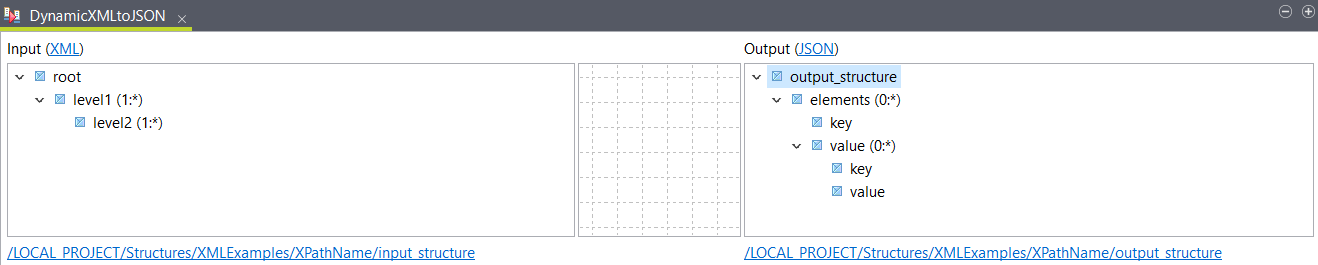

3. Create a standard map and add the XML structure as input and the JSON structure as output.
   For more information, see Creating a standard map.

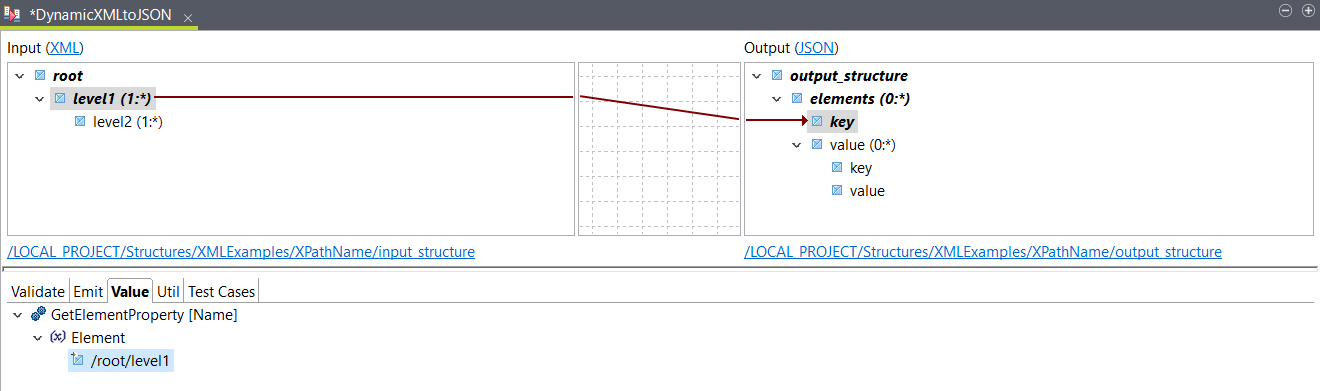

4. Place a GetElementProperty function on the output elements/key element.
5. Place the input level1 element on the Element argument.
   This indicates that the value of the key element should be the name of the level1 element.



6. Place a GetElementProperty function on the output elements/value/key element.
7. Place the input level2 element on the Element argument.
8. Place the input level2 element on the output elements/key/value element.

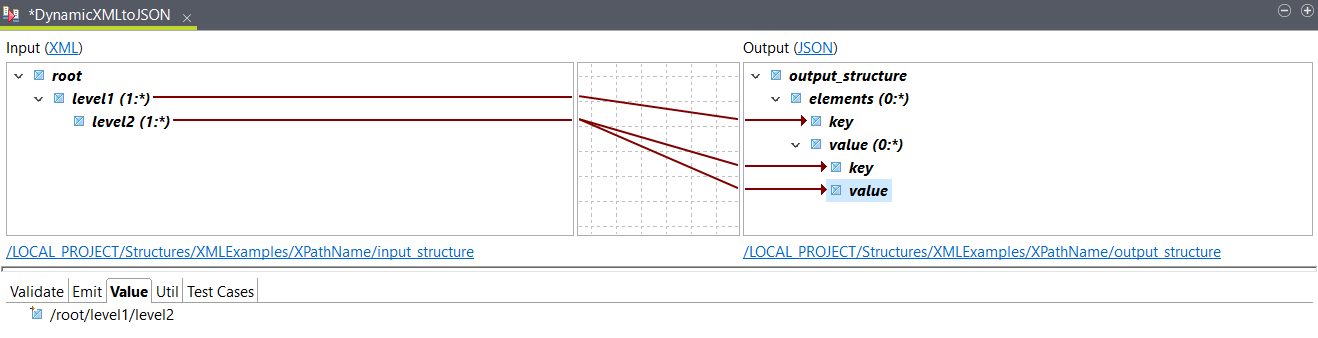

   Your map is configured, you can now test it.



9. Import the XML samples provided in Mapping an XML structure with dynamic elements as sample input documents.
   For more information, see Importing a sample document.
10. Click Test Run to see the result.

{
    "elements": [
        {
            "key": "book",
            "value": [
                {
                    "key": "title",
                    "value": "Pride and Prejudice"
                },
                {
                    "key": "author",
                    "value": "Jane Austen"
                },
                {
                    "key": "isbn",
                    "value": "978-0141439518"
                }
            ]
        },
        {
            "key": "book",
            "value": [
                {
                    "key": "title",
                    "value": "Jane Eyre"
                },
                {
                    "key": "author",
                    "value": "Charlotte Bronte"
                },
                {
                    "key": "isbn",
                    "value": "978-0553211405"
                }
            ]
        }
    ]
}

{
    "elements": [
        {
            "key": "dvd",
            "value": [
                {
                    "key": "title",
                    "value": "Selma"
                },
                {
                    "key": "director",
                    "value": "Ava DuVernay"
                },
                {
                    "key": "released",
                    "value": "2014"
                }
            ]
        },
        {
            "key": "dvd",
            "value": [
                {
                    "key": "title",
                    "value": "The Hurt Locker"
                },
                {
                    "key": "director",
                    "value": "Kathryn Bigelow"
                },
                {
                    "key": "released",
                    "value": "2008"
                }
            ]
        }
    ]
}
