Grouping elements

Create a hierarchy from a flat file using the Data Shaping Query Language GROUP BY and GROUP AS clauses.

Before you begin

You have created an input and an output structure. You can use the JSON samples below to create your structures.

About this task

In this example, you will create a DSQL map to extract data about a store from a flat JSON file and write it to a hierarchical structure.

In the sample JSON below, each object in the items array contains data about an item, including its store and department. In the output, instead of a record per item, you want to first have a record per store, then a record per department in each store, and finally a record per object in each department.

The input data looks like this:

{
    "items": [
        {
            "store_name": "plusstore",
            "store_location": "saint louis",
            "department_name": "sports",
            "salesperson_id": "25",
            "item_name": "MBIKE"
        },
        {
            "store_name": "plusstore",
            "store_location": "saint louis",
            "department_name": "sports",
            "salesperson_id": "25",
            "item_name": "ESCOOT"
        },
        {
            "store_name": "plusstore",
            "store_location": "saint louis",
            "department_name": "electronics",
            "salesperson_id": "32",
            "item_name": "Portable SSD T5"
        },
        {
            "store_name": "plusstore",
            "store_location": "saint louis",
            "department_name": "electronics",
            "salesperson_id": "32",
            "item_name": "Extreme Portable SSD"
        },
        {
            "store_name": "goodstore",
            "store_location": "nashville",
            "department_name": "electronics",
            "salesperson_id": "47",
            "item_name": "Toshiba P300"
        },
        {
            "store_name": "goodstore",
            "store_location": "nashville",
            "department_name": "fresh",
            "salesperson_id": "47",
            "item_name": "Italian tomatoes"
        }
    ]
}

The output structure looks like this:

{
    "stores": [
        {
            "name": "",
            "location": "",
            "departments": [
                {
                    "name": "",
                    "salesperson_id": "",
                    "items": [
                        {
                            "name": ""
                        }
                    ]
                }
            ]
        }
    ]
}

Procedure

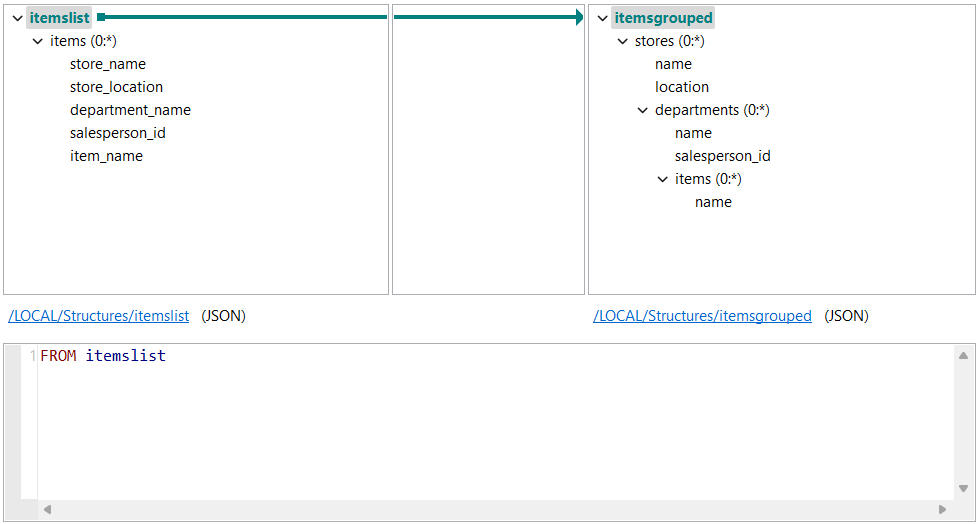

Create a new DSQL Map and add the input and output structures.
A first mapping between the root elements is automatically created. You can see the corresponding Data Shaping Query Language expression in the root element of the output structure.
Click the output stores element and enter the following expression:
```
FROM items
GROUP BY store_name
GROUP AS gstore
```
The GROUP BY clause ensures that the output will only produce one occurrence of stores for each unique store_name value. The GROUP AS clause is used to assign a name to the current group, which can then be used in other expressions. For more information, see the Talend Data Shaping Language Reference Guide.
Place store_name on the output name element under stores.
Click the output location element and enter the following expression:
```
gstore[0].store_location
```
You cannot simply use store_location as an expression in this case, because there can be multiple different store_location values in the same group. Since the grouping is done on store_name, this is the only element that is guaranteed to have a unique value in each group.

The expression above indicates that output value should be the value of the store_location element in the first item of the current group.
Click the departments element and enter the following expression:
```
FROM gstore
GROUP BY department_name
GROUP AS gdepartment
```
This uses the same process as the stores element, this time to produce an occurrence of the departments array for each unique department_name value.
Place department_name on the output name element under departments, then click the output salesperson_id element and enter the following expression:
```
gdepartment[0].salesperson_id
```

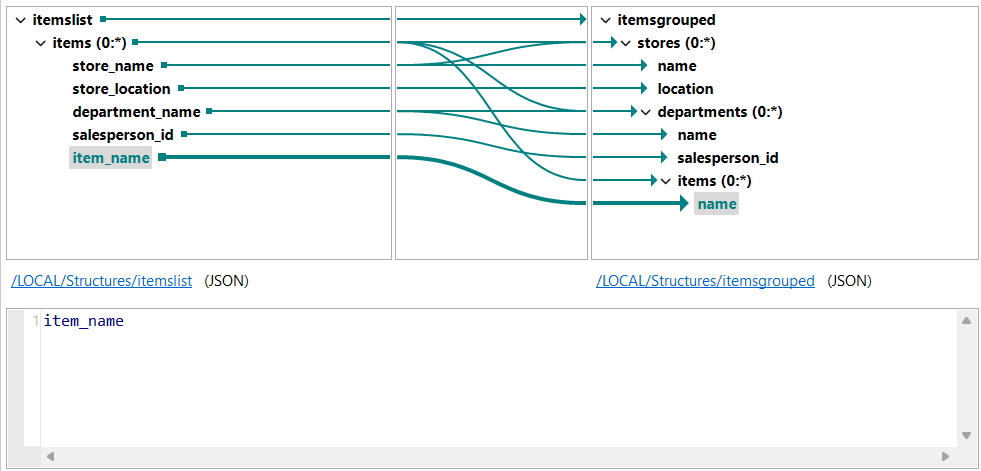

Click the output items element and enter FROM gdepartment, then place item_name on the name element under items.

Results

Your map is configured, you can use the Test Run feature to check the result. In this example, the following result is returned:

{
   "stores":[
      {
         "name":"plusstore",
         "location":"saint louis",
         "departments":[
            {
               "name":"electronics",
               "salesperson_id":"32",
               "items":[
                  {
                     "name":"Portable SSD T5"
                  },
                  {
                     "name":"Extreme Portable SSD"
                  }
               ]
            },
            {
               "name":"sports",
               "salesperson_id":"25",
               "items":[
                  {
                     "name":"MBIKE"
                  },
                  {
                     "name":"ESCOOT"
                  }
               ]
            }
         ]
      },
      {
         "name":"goodstore",
         "location":"nashville",
         "departments":[
            {
               "name":"electronics",
               "salesperson_id":"47",
               "items":[
                  {
                     "name":"Toshiba P300"
                  }
               ]
            },
            {
               "name":"fresh",
               "salesperson_id":"47",
               "items":[
                  {
                     "name":"Italian tomatoes"
                  }
               ]
            }
         ]
      }
   ]
}
