Create a Route with an input file, headers, a cMap component and an
output file.
Procedure
-
Open the Integration perspective, right-click the Route Designs node and click Create
Route.
-
Enter a name, purpose, and description for your Route, then click
Finish.
-
Add the following components to your design workspace and link them with connections:
- A cFile
- A cSetHeader
- A cMap
- A second cFile

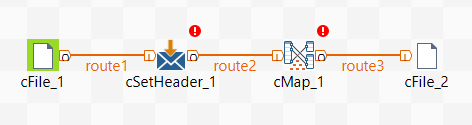

Your Route looks like this:
-
Double-click the first cFile and set the path and file
name for your input XML file.
Example
-
Double-click the cSetHeader and add the following
headers:
Name
|
Language
|
Value
|
"Account_Website"
|
Constant
|
"www.company.com"
|
"Account_Phone"
|
Constant
|
"(555)555-5555"
|
-
Double-click the second cFile and set the path and file
name for your output JSON file.
-
Double-click the cMap
and follow the wizard to generate the map.
-
In the first step, select the input structure you
created in Creating the input structure for your Route and click Next
-
In the second step, select the output structure you
created in Creating the output structure for your Route and click
Finish.
Results

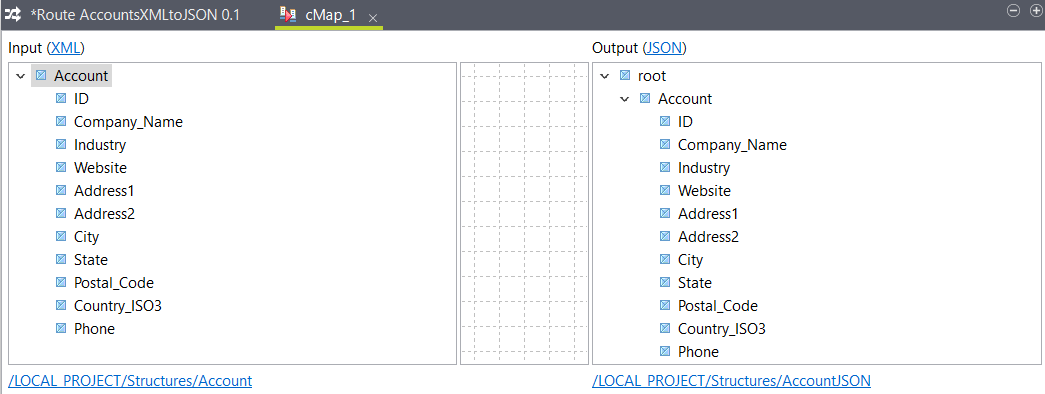

The map is generated using the input and output structures previously created. You can
now map the elements.
