Double-click the tFixedFlowInput
component to set its Basic Settings in the
Component view
Click the three-dot button next to Edit
schema to open the schema editor.

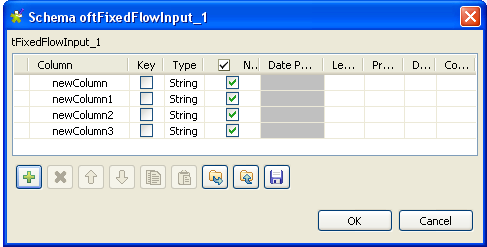

In the schema editor and then under the schema table, click the plus
button four times to add four rows.
Click OK to validate this changes and
then accept the propagation prompted by the pop-up dialog box. The four rows
appear automatically in the Values table of
the Component view.

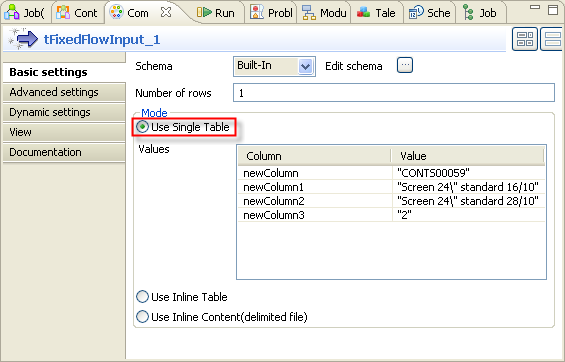

In the Values table within the Mode area, type in the values for each of the
four rows in the Value column. In this
scenario, the values downward are:
CONTS00059, Screen 24\" standard 16/10, Screen 24\" standard 28/10, 2.
Information noteWarning:
These values in the Value column must be put between quotation
marks.
