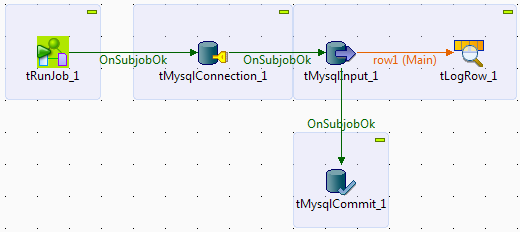

Arranging data flow for the parent Job

Procedure

  1. Add the following components by typing the component names on the design workspace or dropping them from the Palette:

    • a tRunJob component, to call the child Job,

    • a tMysqlConnection component, to open the MySQL database connection,

    • a tMysqlInput component, to read the data written to the MySQL database by the child Job.

    • a tLogRow component to display the data on the console,

    • a tMysqlCommit component to commit data upon transation and close the database connection.

  2. Connect the tRunJob component to the tMysqlConnection compnent using a Trigger > OnSubjobOk connection.
  3. Connect the tMysqlConnection component to the tMysqlInput component using a Trigger > OnSubjobOk connection.
  4. Connect the tMysqlInput component to the tLogRow component using a Row > Main connection.
  5. Connect the tMysqlInput component to the tMysqlCommit component using a Trigger > OnSubjobOk connection.
