Mapping XML data from multiple schema sources

Last updated: 8/28/2025

Once your XML tree is ready, select the first input schema that you want to map.

You can map each input column with the relevant XML tree element or sub-element to fill out the Related Column.

Procedure

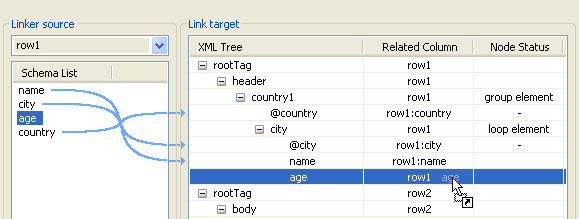

Click on one of the Schema column name.
Drag it onto the relevant sub-element to the right.
Release the mouse button to implement the actual mapping.

A light blue link displays that illustrates this mapping. If available, use the Auto-Map button, located to the bottom left of the interface, to carry out this operation automatically.
If you need to disconnect any mapping on any element of the XML tree, select the element and right-click to the left of the element name to display the contextual menu
Select Disconnect link.
The light blue link disappears.
