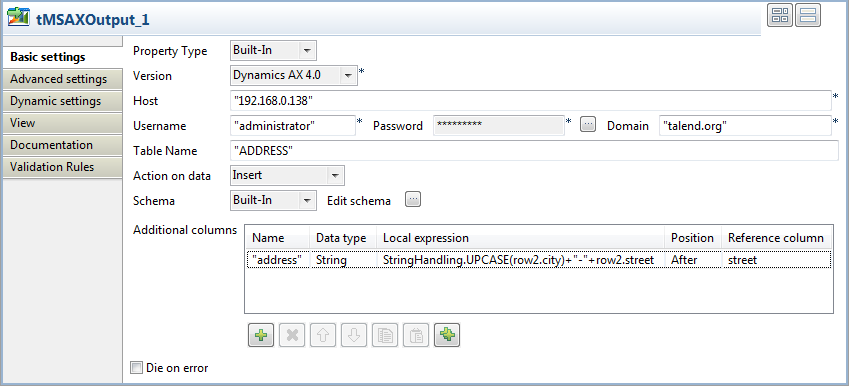

Double-click tMSAXOutput to open its
Basic settings view and define the
component properties.
Set Property type to Built-in.
In the Host field, type in the IP address
of the MicrosoftAX server and type in the domain name on which the
MicrosoftAX server is hosted in the Domain
field.
Enter your username and password for the server in the corresponding
fields and enter the name of the table you want to write data in the
Table Name field,
ADDRESS in this example.
In the Action on data list, select the
action you want to carry on, Insert in this
example.
Click Sync columns to retrieve the schema
from the preceding component.
In this example, we want to retrieve the three input columns:
name, city and street and
write the data included in the three input columns in the MicrosoftAX server
without any changes.
If needed, click the three-dot button next to Edit
Schema to verify the retrieved schema.
In the Additional columns list, click the
plus button to add one line where you can define parameters for the new
column to add to the row you want to write in the
ADDRESS table.
Set a name, a data type, a position and a reference column in the
corresponding columns for the line you added.
In this example, we want to add a new column we call
"address" after the street
column.
Click in the Local expression column and
press Ctrl + space on your keyboard to open
the context variable list and select:
StringHandling.UPCASE(row2.city)+"-"+row2.street. This
expression will write the city name initially capped followed by the street
name to form the address of Bryant park. Thus the
address column in this example will contain the string: New
York-Midtown Manhattan.
