Configuring the connection

Last updated: 8/28/2025

About this task

To configure the connection to your Zookeeper service and thus to the HBase of interest, proceed as follows:

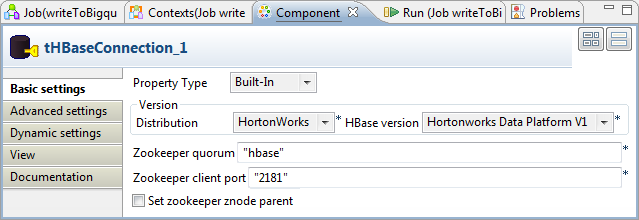

On the Design workspace of your Studio, double-click the tHBaseConnection component to open its Component view.
Select Hortonworks Data Platform 1.0 from the HBase version list.
In the Zookeeper quorum field, type in the name or the URL of the Zookeeper service you are using. In this example, the name of the service in use is hbase.
In the Zookeeper client port field, type in the number of client listening port. In this example, it is 2181.
If the Zookeeper znode parent location has been defined in the Hadoop cluster you are connecting to, you need to select the Set zookeeper znode parent check box and enter the value of this property in the field that is displayed.
