Calling the web service to be used

About this task

In this scenario, a public web service which is available at http://www.webservicex.net/ValidateEmail.asmx will be called by the tESBConsumer component to returns true or false for an email address. You can view the WSDL definition of the service at http://www.webservicex.net/ValidateEmail.asmx?WSDL for the service description.

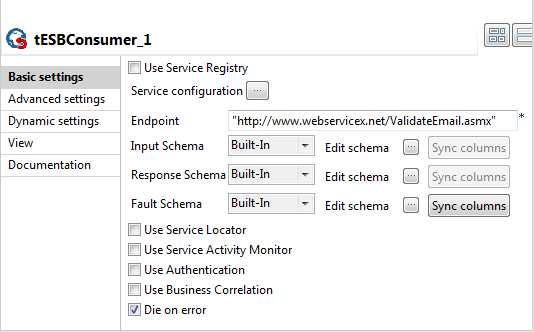

In the design workspace, double-click the tESBConsumer component to open its Basic settings view in the Component tab.
Click the [...] button next to Service configuration.
In the dialog box that appears, type in: http://www.webservicex.net/ValidateEmail.asmx?WSDL in the WSDL field and click the refresh button to retrieve port name and operation name. In the Port Name list, select the port you want to use, ValidateEmailSoap in this example.
Select the Populate schema to repository on finish to retrieve the schema from the WSDL definition, which will be used by the tFixedFlowInput component. This option is only available to users of Talend Studio with ESB. If you don't have this option, please ignore it. The schema can be created manually in the tFixedFlowInput component, which will be shown later.

Click Finish to validate your settings and close the dialog box.
Click the Advanced settings view in the Component tab.
Select the Log messages check box to show the exchange log in the execution console.
