Deleting a master dimension or master measure

You can delete dimensions and measures from the master items as long as the app is not published.

Information noteIf you delete a master dimension or master measure, the visualizations that use the deleted master item will not work unless you replace it with a new dimension or measure.

Do the following:

  1. In sheet view, click Edit Edit sheet in the toolbar.

    The assets panel opens on the left-hand side.

  2. Click Linked Object to display the master items.
  3. Click the dimension or measure that you want to delete.

    The preview opens.

  4. Click Delete at the bottom of the preview.

    A dialog is displayed stating that all visualizations that use the dimension or measure will stop working.

  5. Click OK.

The dimension or measure is deleted from the master items, and all visualizations on the sheets that used the deleted item do not work anymore. You see the text Dimension not found or Measure not found on those visualizations.

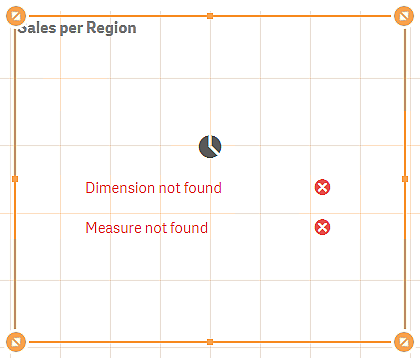

A visualization that is lacking both a dimension and a measure, both which have been deleted from the master items.
Broken item.

Replacing an invalid dimension or measure

When a dimension or measure has been deleted from the master items, all visualizations that reference to the deleted master item will not work anymore, until the missing dimension or measure is replaced.

Do the following:

  1. In sheet view, click Edit Edit sheet in the toolbar.

    The assets panel opens on the left-hand side. Click Linked Object to display the master items.

  2. Drag a dimension or measure from the Dimensions or Measures sections to the visualization on the sheet.

    The shortcut menu opens.

  3. Select Replace invalid dimension or Replace invalid measure.

The visualization is complete and works again.
