Talend MDM Web UI provides a navigator page which allows
you to explore all data records linked with any of the selected data record
by foreign keys.
The following scenario introduces how to navigate the relationships between
master data records based on a data model Music you
have created in Talend Studio.
In this scenario, it is assumed that you have created the data model
Music and added several entities into it:
Album, Artist,
Song, Writer, and
User, and defined the relationships between
entities as follows:
The User entity has a foreign key Artist
that points to the Artist entity, and a
foreign key Songs that points to the
Song entity.
The Artist entity has a foreign key
Albums that points to the
Album entity.
The Song entity has a foreign key Writer
that points to the Writer entity.
The Album entity has a foreign key Tracks
that points to the Song entity.
You have also defined a role Music_Manager so that only
users granted with this role are authorized to access the data records that
pertain to all entities in the Music data model.
After you have designed the Music data model,
Music data container,
Music_Manager role and views related to the
Music data model and deployed them to the MDM
server, authorized users can populate the Music data
container with data records.
Now you are ready to explore the data records linked together by foreign keys.
Note that the data records displayed on the navigator page depend on the
role and access rights assigned to you and the parameters set in Talend Studio when creating a view for the entity.
About this task
This scenario starts with one master data record that pertains to the
User entity and then navigates all the other
data records that are linked with the selected master data record in the
navigator page as follows:
Procedure
Open a master data record that pertains to the
User entity.
Example
Click More... >
Navigator to open a navigator
page.
At first, only the selected data record is displayed as a node on the page
together with the primary key information defined in
Talend Studio. If the primary key information is not defined, the
primary key value is displayed.
You can also hover over the node to display the entity to which the selected data
record pertains.
Example
Click the node to display all navigation options that you can
select to perform operations on the selected data
record.
Four navigation options are available:
In: display entities (if
any) which have foreign key links to the entity
that the selected data record pertains to (inbound
foreign keys).
Out: display entities (if
any) to which the entity that the selected data
record pertains to has foreign keys links
(outbound foreign keys).
Detail: open the selected
data record and view its details.
Settings: set globally the
number of linked records to be loaded for each
selected data record.
If needed, you can double-click the node to make it collapsed
in light blue. In this case, both the
In and
Out navigation options are
disabled and grayed out.
You can double-click a collapsed node to expand
it.
In this scenario, since the User entity
has two foreign keys that point to the
Artist and
Song entities respectively,
click the Out option to display the
entities that the User entity points
to.
You can hover over the entity icon to display the corresponding foreign key on the link.
Click the Song icon to display all data
records pertaining to the Song entity
and linked with the selected user data record.
In this example, three master data records (songs) pertaining to the
Song entity and linked with
the selected user data record John
DOE are displayed.
Click one record that pertains to the
Song entity to display the
navigation options.
In this example, the song data record Let There Be
Rock is selected. Since the
Song entity has a foreign key
Writer that points to the
Writer entity, and meanwhile
the User entity has a foreign key
Songs that points to the
Song entity, and the
Album entity has a foreign
key Tracks that points to the
Song entity, you can click
the In and Out
options to explore the data records linked with the selected
song data record.
Click the Out option to display the
entity that the Song entity has
foreign keys points to, Writer in
this example.
Click the Writer icon to display the data records
pertaining to the Writer entity and
linked with the selected song record Let There Be
Rock by outbound foreign keys.
Click the In option to display the
entities that have foreign keys pointing to the
Song entity,
User and
Album entities are displayed
in this example.
Click the User icon and then click the
In option.
Click the
Album icon and then click
the In option.

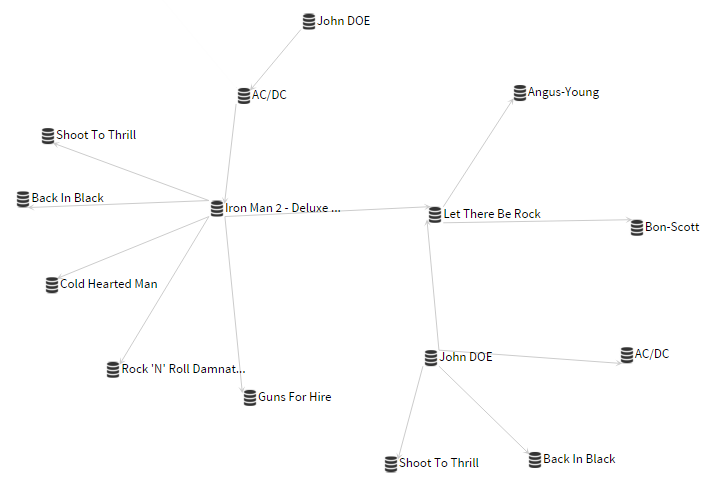

All
data records that are linked with the selected song
record Let There Be Rock by
inbound foreign keys are displayed.

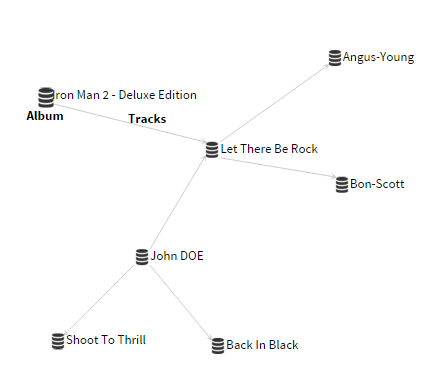

In this example, since the Album entity
is linked with the Artist entity by
an inbound foreign key Albums and is
linked with the Song entity by an
outbound foreign key Tracks, click
the Album icon first and then click
the In and Out
options to navigate its linked data records.
Example
Do the same starting from the Artist
icon for the firstly selected user record John
DOE and display all data records
pertaining to the Artist entity and
linked with the selected user record.
On the navigator page, you can zoom in or zoom out on the fly to have a better
view of the displayed nodes.

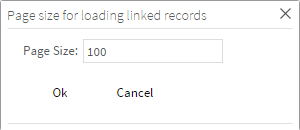

If needed, click any node to display the navigation options
first, then click Settings to
globally change the number of linked records to be loaded
for each node on the navigator page, and click
OK to save your
changes.
Example
What to do next
From the navigator page, you can also open a
Relations page to navigate the data
records linked with the selected data record, as long as there is a
foreign key defined to point to the entity that the selected data
record pertains to.
For example, in the navigator page, click the writer record
Angus-Young to display the
navigation options, and then click
Detail to open the data
record on the right side of the navigator page.
Click More... > Relations to open
the Relations page.
In the Relations area, you can define criteria to search data
records linked with the selected data record.
Entity: provide a list of
entities that are linked with the entity that the
selected data record pertains to by foreign
keys.
Key: allow you to specify
the primary key information of the data record to
be searched.
From: allow you to choose
the start date in a time range within which the
data records are created.
To: allow you to chose the
end date in a time range within which the data
records are created.
Keywords: allow you to
enter a keyword to search data records.
If needed, click Export to export the search results into an
.xls file.
In this example, select Song from the
Entity list and then click
Search to list the search
results.
Double-click one item in the search results to open a new page which allows you to
browse the data record.
Additionally, you can perform
other operations with the options available on the
view toolbar.
