Creating a PixelPerfect chart with user-defined series

You can create a native PixelPerfect chart with manually added series. This method is simpler than using a series template.

Requirements

Before you start creating a native PixelPerfect chart, you need to have a chart in your Qlik Sense app with a source table that adapts well to what you want to visualize. In the Qlik Sense chart, select the appropriate dimensions and measures to filter the data sufficiently from the app's data model.

The data you use for a native PixelPerfect chart has to be added as a table data binding. To create this type of data binding, use the Field List menu and add an item under Tables.

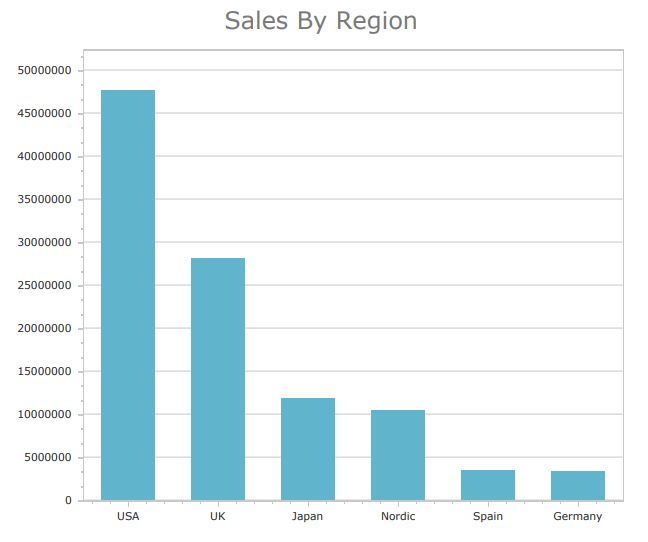

Creating a simple PixelPerfect chart

This is the general workflow for creating a native PixelPerfect chart. Parts of it might not apply to every chart available. Each of the charts is different, serving a range of visualization needs ranging from simple to complex. Depending on what you need to visualize, some additional configurations might also be required.

請執行下列動作：

1. Open the Field List menu available from the right-side panel in the designer.

2. Click the plus icon next to Tables.

3. From the available sheets, select the Qlik Sense chart you want to add as a table. Click the icon next to it.

   The data binding is added.

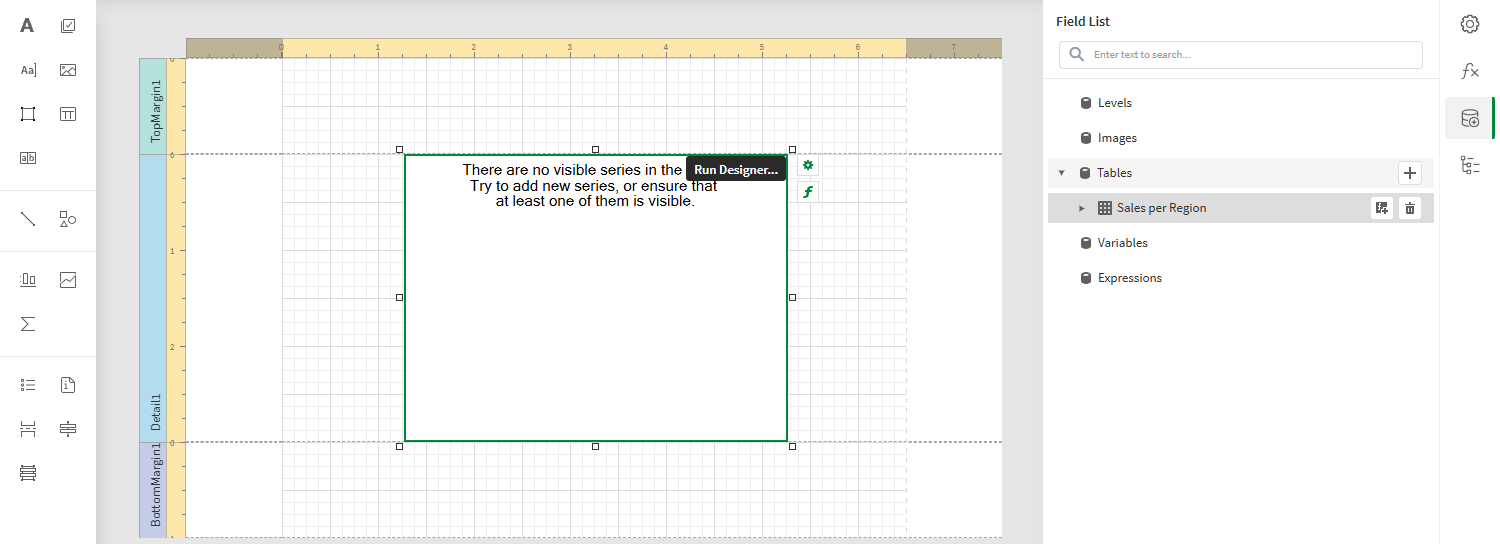

4. From the toolbox panel on the left side of the designer, drag a Chart onto the design surface.

5. Select the blank chart and then open the Properties menu from the right side of the designer.

6. Under Chart Tasks > Data Member in the menu, select the table you added as a data binding.

7. Inside the chart, click Run Designer....

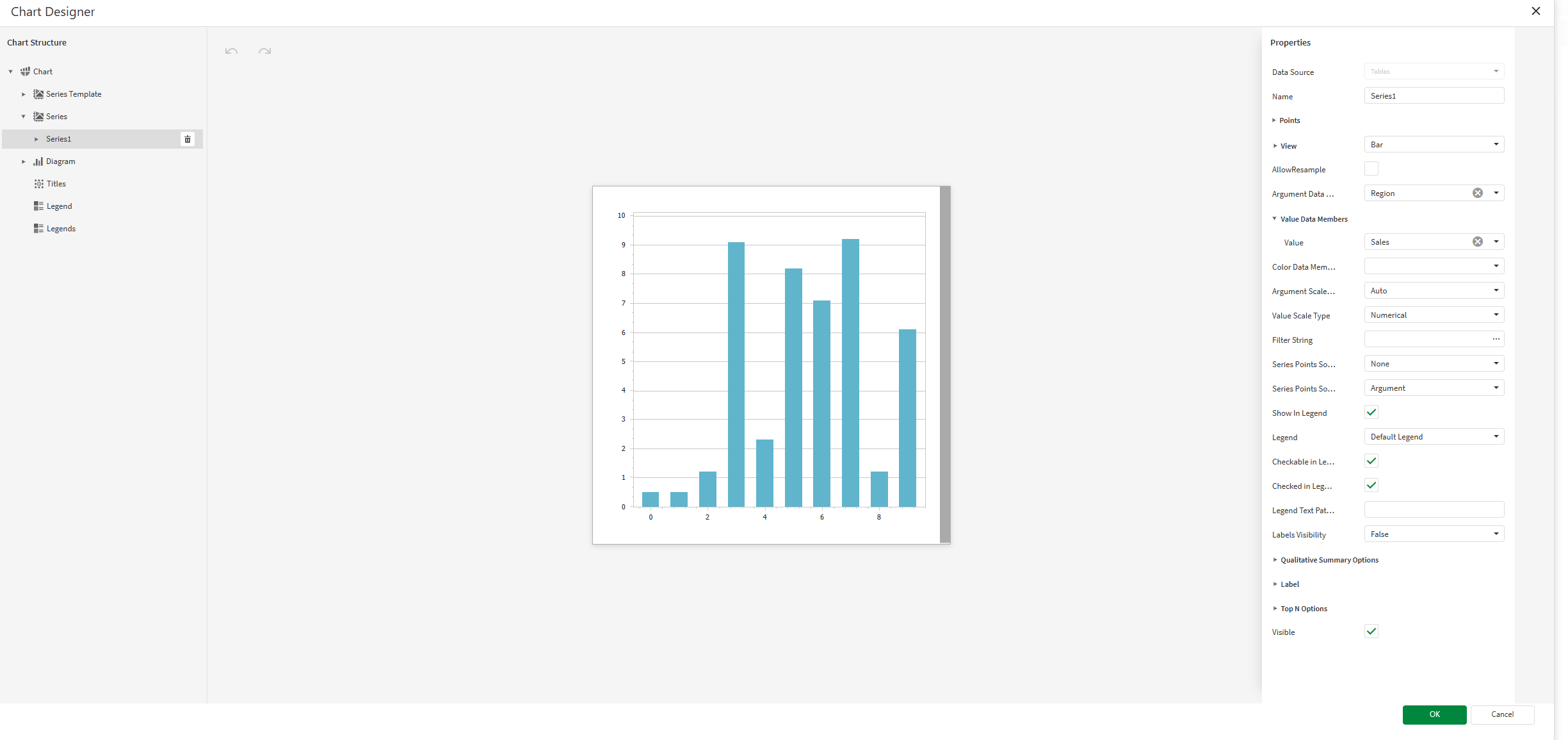

8. In the left panel in the Chart Designer, hover over Series and click the plus icon.

9. In the menu, select a chart type. For a list of available charts, see Available chart types.

   The Properties for the new series are shown on the right side.

10. Under Name, add a name for the series. This is recommended, for example, if your chart requires more than one series.

11. For Argument Data Member, use the drop down menu to select a field containing independent categories that group the data.

    提示備註In this context, selecting the Argument Data Member is similar to selecting a dimension in Qlik Sense.

12. Expand Value Data Members. For Value, select a field containing the variable metrics you want to visualize. For certain advanced chart types (for example, Candle Stick chart), you might need to select more than one Value field.

    提示備註In this context, selecting the Value is similar to selecting a measure in Qlik Sense.

13. If needed, add additional series. In the left panel in the Chart Designer, hover over Series and click the plus icon. Complete the remaining configuration steps as outlined above.

Additional tips for configuring the chart

The above workflow shows you how to create a simple native chart and connect it to Qlik Sense data sources. Here are some extra tips to help you make the most out of native PixelPerfect charts.

Labels and legends

You might need to configure labels and legends so that they appear correctly.

Changing the text

You can change the text shown in the labels and legend. You can do this by entering specific placeholders in the following properties:

• Labels: Open the Properties for the series, and add a placeholder to Label > Text Pattern.

• Legend: Open the Properties for the series, and add a placeholder to Legend Text Pattern.

The placeholders instruct PixelPerfect to generate dynamic text with commonly needed values. For example, to use the name of the series, enter {S}. To enter the name of specific field values, enter {A}.

For a full list of placeholders you can use, see Text definition placeholders for native PixelPerfect charts.

Turning labels and legends off

If your chart has a lot of data, it is often preferred to turn labels off (they are turned on by default). To turn off labels in a series, change the Labels Visibility setting in the Properties to False.

To turn the legend off, you need to return to the chart's global Properties in the Chart Designer. In the left-side panel, click Chart. In the Properties menu on the right side, expand Legend and set Visibility to False.

Charts with more than one series

Some native PixelPerfect charts will require you to add more than one series to the chart to visualize all the data. Common examples are grouped or stacked bar charts, stacked line charts, and nested pie charts. You might also need to add multiple series if you want to create a chart that, in Qlik Sense, would require more than one dimension or measure.

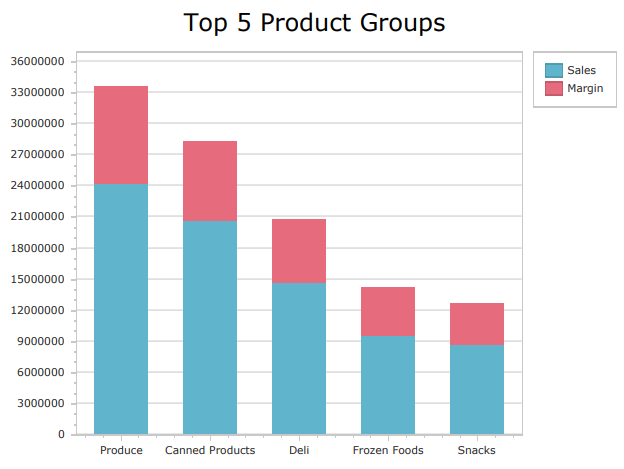

For example, to create a stacked bar chart with one independent grouping (Product Group) and two variable metrics (Sales and Margin), you would need to create two series:

• Sales, with an Argument Data Member of Product Group and a Value of Sales

• Margin, with an Argument Data Member of Product Group and a Value of Margin

Editing a chart with a user-defined series

Some additional steps are required to edit an existing PixelPerfect chart that is configured with a user-defined series. When you open the Chart Designer, the Properties that are initially shown are the global properties for the chart. To edit the elements that are defined in the visualization, you need to first select the series in the left-side panel.

請執行下列動作：

1. In the Chart Designer, double-click Series in the left-side panel.

2. Select the series you want to edit.

3. Edit the Properties on the right side.
